1316 - CabinetMate™

Position and Drill Perfect Shelf-Pin Holes Every Time


SKU: 1316 Category:
View Replacement Parts
<< Back
CabinetMate™ - Replacement Parts

||| Details

Ever wonder how to make level, wobble-free cabinet shelves? The Milescraft CabinetMate™ is just the tool to get the job done. This easy-to-use, lightweight and durable jig is a great alternative to shop-made jigs, which typically wear out after just a few uses.

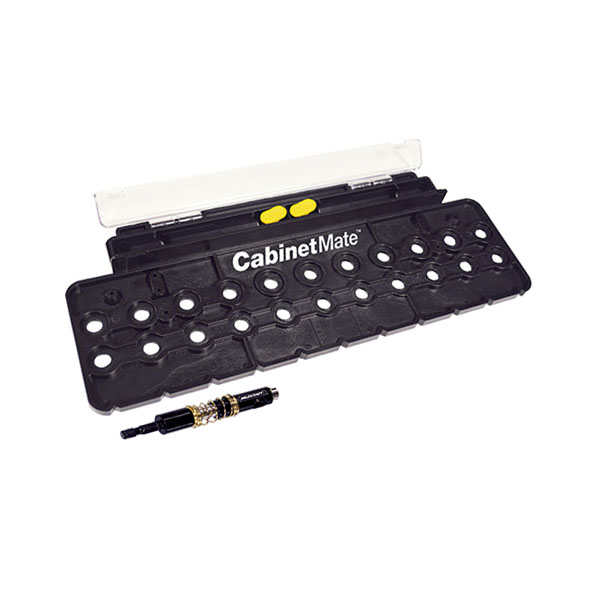

The CabinetMate™ shelf pin jig has a rigid main body, indexing pins, and a self-centering, spring-loaded drill bit. The custom spring-loaded-brad point drill bit allows the holes you drill to self-center with the holes on the main body. This bit is pre-set to bore a crisp hole with consistent depth for a perfect fitting shelf pin. The CabinetMate™ also comes with a built-in closed storage compartment for your bit and indexing pins.

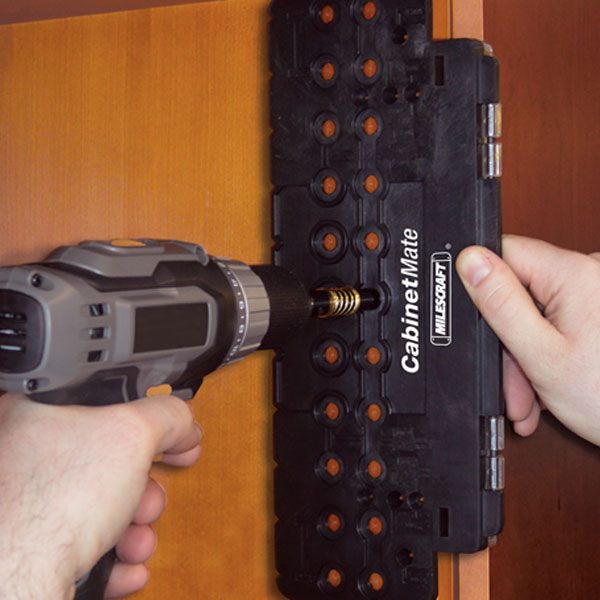

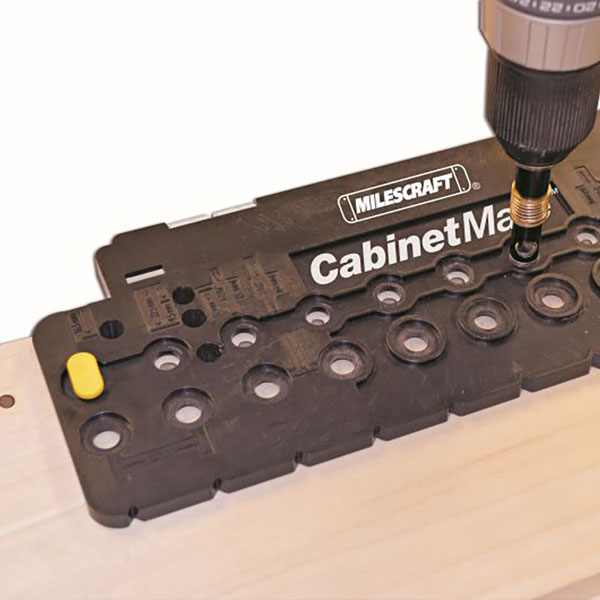

The CabinetMate™ allows you to accurately drill eleven holes, evenly spaced at 32mm apart, in just one setting. This innovative tool can be used on cabinet sides before assembly, already assembled cabinets and face-frame or frameless cabinets. A stand-out feature of the CabinetMate™ is that it also allows you to mark the locations for Euro-style hinges. This tool comes with the 1/4″ self-centering drill bit. If you are looking for a very affordable, high quality and extremely versatile cabinet jig, the new Milescraft CabinetMate™ is the only one you will need to look at.

CabinetMate™ Shelf Pin Jig

  • Large device, drill up to 11 holes at one time
  • Storage compartment, for storing: indexing pins, shelf-pin bits (up to 2)
  • Additional hole locations, for concealed hinges (euro-style cabinetry)

Indexing Pins

  • For accurate transfer of holes
  • Includes both 1/4″ & 5mm index pins

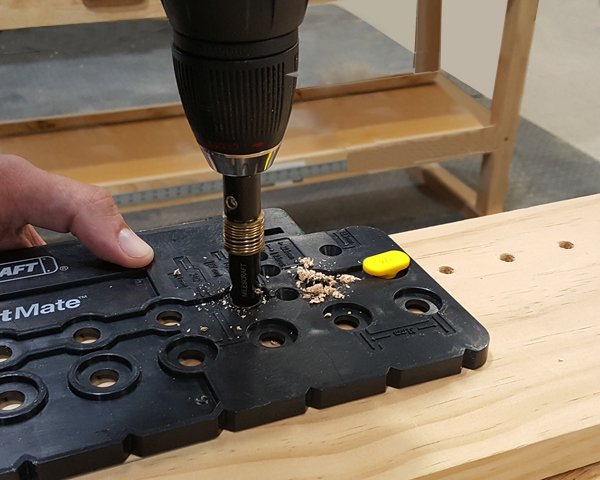

Self-Centering, spring-loaded bit

  • For precise drilling at pre-set tension and depth
  • Includes 1/4″ ShelfPinBit™

*Please note that before you use the ShelfPinBit™, you will want to fully tighten the set screw. Also, be sure that when loosening the set screw on the ShelfPinBit™, you do not loosen it too much, as the pressure from the spring will make the bit come apart.

 WARNING: Cancer and Reproductive Harm. For more information go to

  • Material

    ABS Plastic

  • Includes

    Indexing Pins (1/4" &5mm), and 1/4" self-centering drill bit

  • Weight

    1.1 lbs

2312/2313 ShelfPinBit Manual (pdf)

Download >>
1316 CabinetMate From Milescraft
2312/2313 ShelfPin Bit Video
Average Review:
4.78 out of 5 based on 9 customer ratings

Join the Milescraft community and write a review for this product!


Add a review

  1. 5 out of 5

    The CabinetMate is made for beginners or pros! This product is super easy to use. I have already tried it twice and love it! The drill bit is sharp and makes clean holes. This product can be used for the workshop or DIY. I will be putting in a shelf to set some pictures on in an entertainment center and this product is going to be great to have for that project! This is one of my favorite products of Milescraft!

  2. 5 out of 5

    This jig sure made it easy for me to put some adjustable shelves into my new lathe stand! No measuring, no checking for level, no fighting to hold things in place. Just set the jig down, pick which set of holes you want to use, hold it against the workpiece with your hand and start drilling evenly spaced holes. I’m really glad to have this thing, and I will be building more adjustable shelving into my future projects – something that I have avoided up until now.

  3. 5 out of 5

    (verified owner)

    Everything I got was as advertised. Fun to work with and good quality items.

  4. 5 out of 5

    (verified owner)

    Very good quality and and finished.

  5. 5 out of 5

    (verified owner)

    Rugged construction sees frequent use. Good product.

  6. 4 out of 5

    This is an incredibly easy to use, well-thought out product and — once you’ve used it — it’s an indispensable tool for anyone building cabinets with adjustable shelves!

    However, an important caution is that it comes ONLY with the 1/4″ bit, NOT the also referenced 5mm bit. That’s the only reason I’ve knocked off one rating star.

    At $11 each, it does make sense to include only one of these two bits in the package to keep the price down, and Milescraft has simply chosen the 1/4″ bit, likely because its market research shows 1/4″ is more popular overall than 5mm.

    On the other hand, 5mm seems to be at least equally popular in some areas, so Milescraft’s choice to offer only one SKU with an included 1/4″ bit has the unfortunate consequence of forcing users who need only the 5mm bit to buy that bit separately after already having paid for a 1/4″ bit they’ll likely never use. That does seem to impose an unfair penalty for 5mm-only users.

    I believe it would make a lot of sense if Milescraft would re-think its marketing decision on all this and — instead — offer either:

    1. This same template under two SKUs, one each for an included 1/4″ bit or a 5mm bit (and perhaps even a 3rd SKU with both bits included for those who really do need both sizes); or

    2. This same product as a single SKU at an even lower price, but without including either bit (but clearly state so on the package front!) so the customer can choose whichever bit is appropriate for their intended use.

    • Thank you for your detailed review! To clarify, Milescraft does offer two SKUs. The #1316 CabinetMate includes a 1/4″ shelf pin bit and model #1366 CabinetMate includes a 5mm bit.

  7. 4 out of 5

    this jig is straight forward easy enough for any one to use. the self centering bit does a good job centering the hole but does not drill holes deep enough and leaves a sloppy hole. have to clean holes out with forstner bit.

  8. 5 out of 5

    (verified owner)

    Great product

  9. 5 out of 5

    (verified owner)

    Good product

How do I open the plastic packaging the product comes in?

Milescraft plastic packaging can be opened with a utility knife or plastic package opener.
