1219/1269 - CircleGuideKit

1219 CircleGuide Kit
1219 Large Circle Jig1219 Small Circle Jig1219 Offset Base1219 Picnic Table1219 Table1219 Speaker1219 Coasters1219 LargeCircle Readout1219 Small Circle1219 Parts1219 Router Bit

Using your router, you can cut circles from 1.5” to 52” in diameter.

$39.99

View Replacement Parts
<< Back
CircleGuideKit - Replacement Parts

||| Details

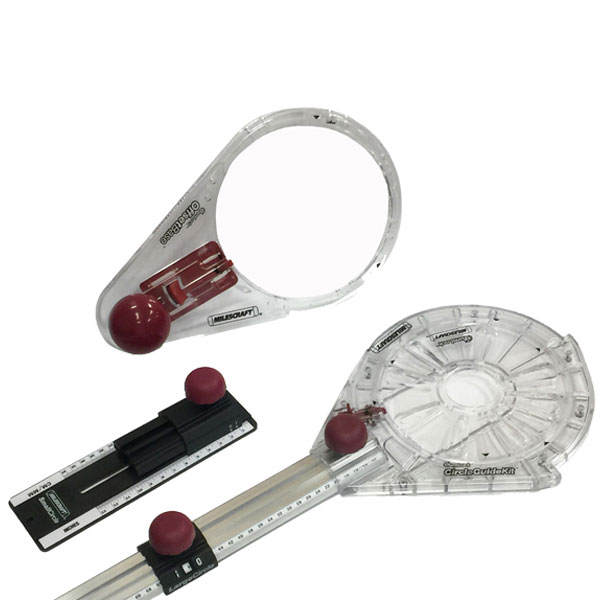

Cut small and large circles from 1.5” in diameter to 52” in diameter with the CircleGuideKit. With the included TurnLock™ base plate, this product is compatible with most routers. There is no longer a need for that homemade circle cutting jig, the CircleGuideKit does it all for you and includes everything you need to cut your desired circle. It also includes a BONUS Offset Base for finishing edges on your workpiece.

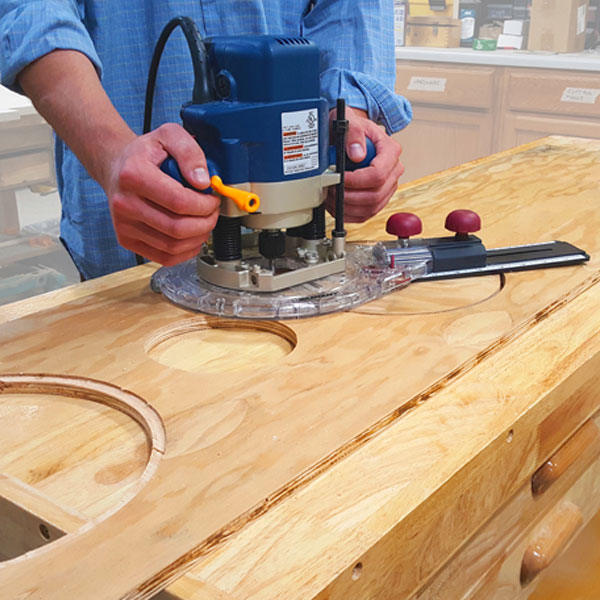

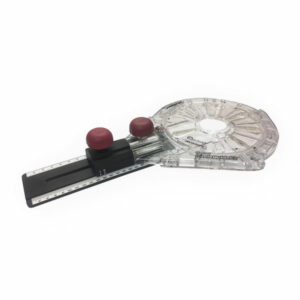

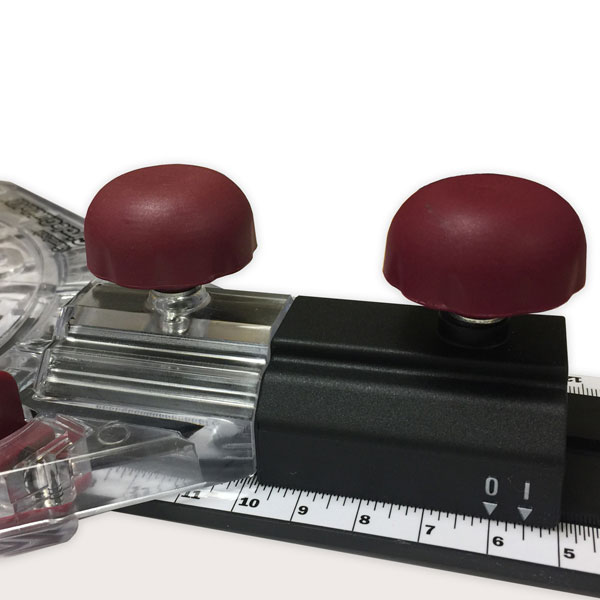

Small Circle Jig

  • Built-in imperial and metric scales, with an easy readout window for setting the diameter of both your inside and outside cuts
  • Quickly and easily attaches to the included TurnLock™ circle guide head
  • Cuts circles from 1.5″ to 12″ in diameter

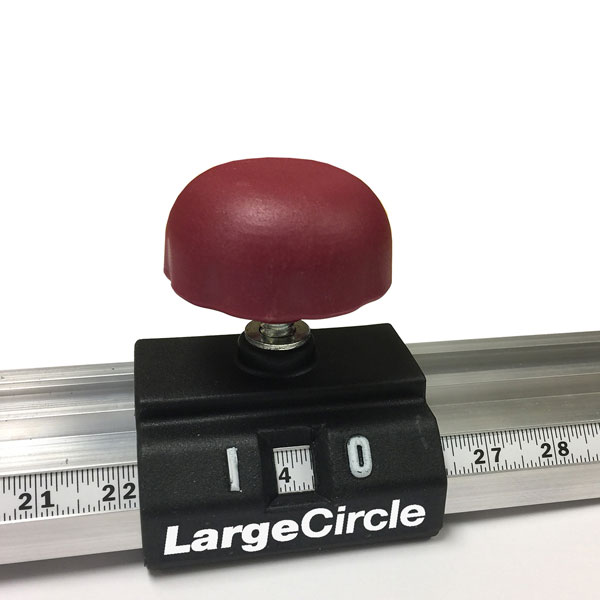

Large Circle Jig

  • Built-in imperial and metric scales, with an easy readout window for setting the diameter of both your inside and outside cuts
  • Quickly and easily attaches to the included TurnLock™ circle guide head
  • Cuts circles from 10″ to 52″ in diameter

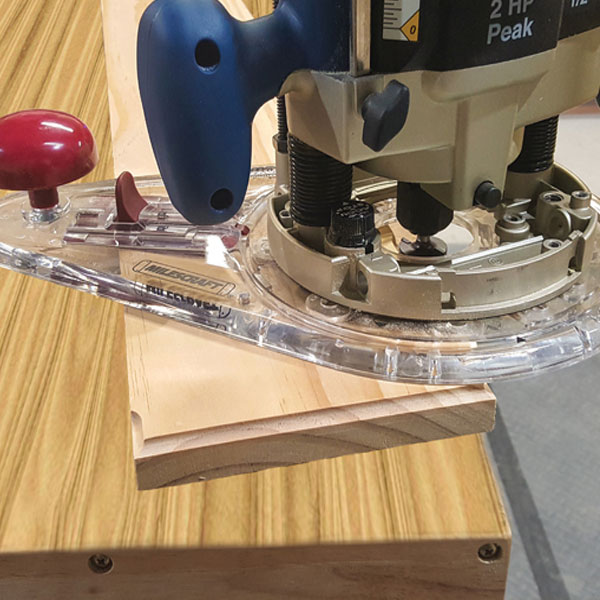

BONUS Offset Base

  • 13” offset base provides added stability when finishing the edges on your workpiece using your router
  • Oversized handle knob is easy to grip providing superior control of your router

Equipped with the patented TurnLock™ Technology

  • Allows for fast tool-free guide bushing and router attachment exchanges
  • Thumb-activated lock/release mechanism enhances speed and safety when changing tools
  • The TurnLock™ base plate accepts all Milescraft® bushings

California Residents: Proposition 65 Information

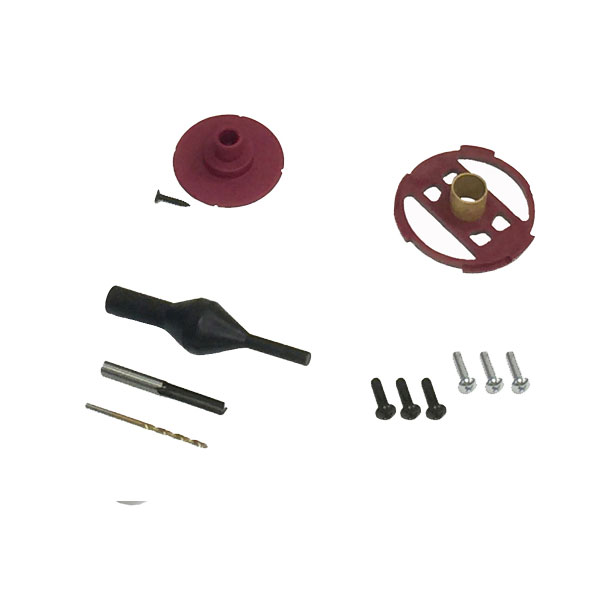

  • Includes

    Small Circle Jig, Large Circle Jig, Offset Base, TurnLock™ Base Plate, Router Bit, Drill Bit, Centering Pin, Bushing and Mounting Hardware.

  • Bushing

    5/8" Long Metal Nose Bushing

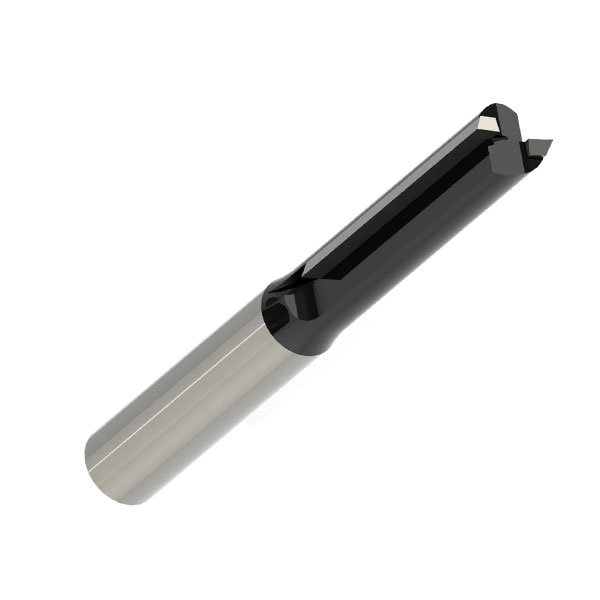

  • Router Bit

    1/4" Straight Bit

  • Drill Bit

    3/32" Brad Point Drill Bit

  • Material

    Durable polycarbonate material, and metal

  • Weight

    4.4 lbs

1219/1269 CircleGuideKit Manual (pdf)

Download >>

BasePlate Mounting Key (30681 BasePlate) (pdf)

Download >>
1219 CircleGuideKit Video
WATCH NOW >>

Do you offer beams for the CircleGuideKit longer than 20"?

Beams can be custom cut to the desired length. Please contact Milescraft Customer Service by phone or email, and we would be happy to assist you with your custom beams.

Do I need special screws to attach the TurnLock™ BasePlate to my Ryobi Router?

Ryobi routers require special screws which will be supplied upon request at no charge to you. To acquire these special screws please contact Milescraft Customer Service.
info@milescraft.com or 224-227-6930

How do I prevent the spread of sawdust when using my router?

If your router comes with a dust deflector, we recommend installing this before routing. It may also be helpful to install a dust collection adapter on your router, should this accessory be available for your particular brand/model number.

Average Review:
5 out of 5 based on 4 customer ratings

Join the Milescraft community and write a review for this product!

WRITE A REVIEW>>

Add a review

  1. 5 out of 5

    I’m a hobby woodworker that builds furniture and cabinets. I’ve built many shop made circle cutting guides but all of them ended up like Swiss cheese after only a few uses. I sought to find a trammel router kit that was accurate and repeatable, compatible with all my routers, and is of great value. I was disheartened to find most trammel router kits inaccurate, incompatible with my assortment of routers, and expensive with a lack of options.

    However, the Milescraft #1219 Circle Guide Kit is a diamond in the rough. The kit is compatible with all of my routers (DeWalt, Bosch, and even Festool). It is also extremely accurate. I was able to cut an arc with an exact 19-7/8″ radius. Finally, you get a lot for your money. Not only do you get a circle cutting trammel for large and small circles, but you also get an offset base which is great for doing edge treatments on table tops and panels. The even includes a 1/4″ router bit that’s calibrated to the trammel. This kit is the best bang for the buck. But don’t take my word for it; do your research. You’ll quickly find out that most trammel kits are inferior and overpriced.

    View Video

  2. 5 out of 5

    This is complete kit which includes everything you will need to cut circles with a router, up to 52″ in diameter. Router ensures smoother cut than most jig saw blades and with a use of this kit your circle will be perfect even on your first try.
    I really like that Milescraft included in this kit even a drill bit to pre-drill a hole for a pivoting screw and that screw itself. As usually with Milescraft products this kit also contains a decent quality router bit (1/4″ shank), which is very nice bonus, especially considering affordable price of the kit.
    It is very easy to use, however it will take some reading when you are new to this jig. Instruction manual seem to be a bit lengthy but I tried to be patient and read it all so I can summarize it now for you.
    The first thing to do is to mount Centering Pin (part 12) in your router. This is to center properly router on the base plate. Second step is to remove the acrylic plate from your router. Insert TurnLock Bushing (11) into the Base Plate (8) and screw with minimum 2 screws your router base to the Base Plate (8). Now replace Centering Pin in your router colet with a Router Bit (10). Remove the TurnLock Bushing (11) from the Base Plate. Mark the center of your circle on your stock with big X (lines should be about 2″ long). Screw the Center Pivot (6) to the stock with Pivot Screw (7). It has little marks on it which makes it easy to align it with the X mark you made. Put together Circle Guide Head (1), TurnLock Base Plate (8) and Aluminium Beam (3). Connect Large Circle Slide (5) with a Aluminium Beam (3) according to the manual. Place the Large Circle Slide (5) onto Center Pivot (6). Now you can set the desired diameter of your circle using a metric or imperial ruler on the Aluminium Beam (3). This part is tricky though. Large Circle Slide (5) can be mount in two ways onto the Aliminium Beam (3). One position is for diameters of 10 to 42″ and the other for larger circles, up to 52″. Rulers are useful only for the circles up to 42″. If you want to cut bigger circles rulers became irrelevant and you have to use your tape measure to set the distance between inner side of a router bit and Pivot Screw (7). Since plywood sheets are 4 feet wide and many people might want to cut that big circles it would be nice if the Aluminium Beam is a bit longer so there would be no need to change the orientation of the Large Circle Slide and the ruler would remain relevant for circles up to 48″ in diameter. At least you can still cut such big circles.
    All parts are made from good quality plastic or metal and look like will last. It comes well packed in a box covered with photos to give you better idea what is inside. Manual is written in English, Spanish. French and German.
    I had no problem cutting 4 feet diameter circles from 3/4″ thick plywood. To make it easier on my router and router bit I did it in 3 passes though, in each pass cutting just 1/4″ deep groove. I would recommend this product to advanced woodworkers and beginners, as long as you have a bit of experience with a router.

  3. 5 out of 5

    Besides the perfect circle cuts, the one thing that stood out for me about this product was its ability to work with most all routers. I was able to connect this easily to my cordless trim router to cut a circle easily! Set up was simple, the directions where clear and it is a very repeatable task, which homemade jigs are not always dependable for long term use.

  4. 5 out of 5

    I got this kit and needed to cut out a circle of 1″ thick solid oak for a stool. It was quick to fit to the head of my large dewalt router, easy to set up, and cut a perfect circle within 2 minutes. It comes with the drill bit, screw, and router bit (which is surprisingly great and good quality)I’ve made a shop jig to do this, but it doesn’t compare to the quality of this jig. I made a video of me using this, check it out at: https://youtu.be/BTi4orkszrY
