1333/1383 - DowelJigKit

Build or Repair Furniture and More, Everything You Need To Get Started Creating Strong and Accurate Doweled Joints


SKU: 1333/1383 Categories: , , ,
View Replacement Parts
<< Back
DowelJigKit - Replacement Parts

||| Details

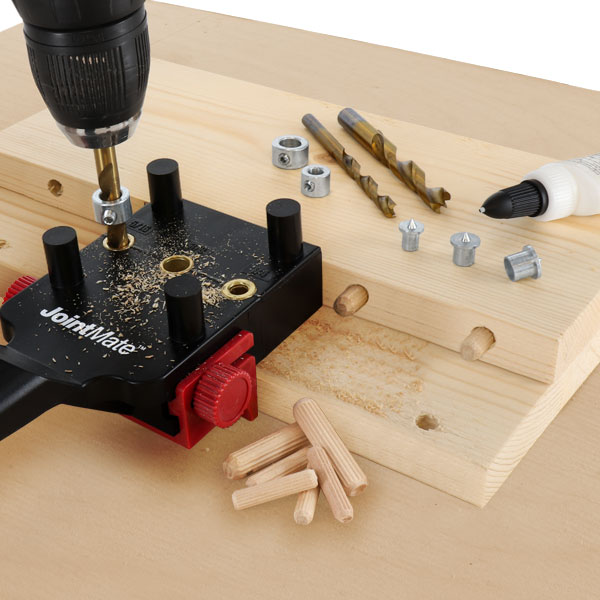

DowelJigKit contains everything you need to get started creating strong and accurate doweled joints. The self-centering dowel jig and adjustable fence allow for precise dowel alignment and maximum joint strength. Use with wood boards from 1/2″ to 1-1/2” thick. Now you can perform one-handed alignment and skip the hassle of measuring and marking when drilling corner or edge joints.

Self-Centering Guide Posts

  • Allow for accurate, one-handed alignment for maximum joint strength and precise dowel alignment

Insert Molded Hardened Steel Bushings

  • Ensure accurate alignment when drilling for perfectly positioned dowels
  • For longer doweling life

Adjustable Guide Fence

  • Easily adjust to the depth of the board so that each hole will be precise from one to the next
  • Can be removed without removing the guide knobs
  • Compatible with 1/2″ to 1-1/2” thick lumber

Steel Dowel/Tenon Centers

  •  For durable and accurate location marking of dowel holes or in the second board being joined

Fluted Hardwood Dowel Pins

  • Chamfered ends add strength and endurance to your joined surfaces
  • Includes 3 sizes – 1/4”, 5/16”, 3/8”

Brad Point Drill Bits

  • Bits ensure pinpoint accuracy
  • Includes 3 sizes – 1/4”, 5/16”, 3/8”

Steel Drill Stops

  • For durable performance
  • Includes 3 sizes – 1/4”, 5/16”, 3/8”

JointMate Chart

 WARNING: Cancer and Reproductive Harm. For more information go to www.P65Warnings.ca.gov/product

  • Drill Bushings, Stops, Bits, and Pin Sizes

    1/4", 5/16", 3/8"

  • Minimum Board Width (not thickness) for 1/4" & 5/16" bushing


  • Minimum Board Width (not thickness) for 3/8" bushing


  • Closest distance for dowel from board end (for 1/4" and 5/16" bushing)


  • Closest distance for dowel from board end (for 3/8")


  • JointMate Body Material

    ABS Plastic

  • Includes

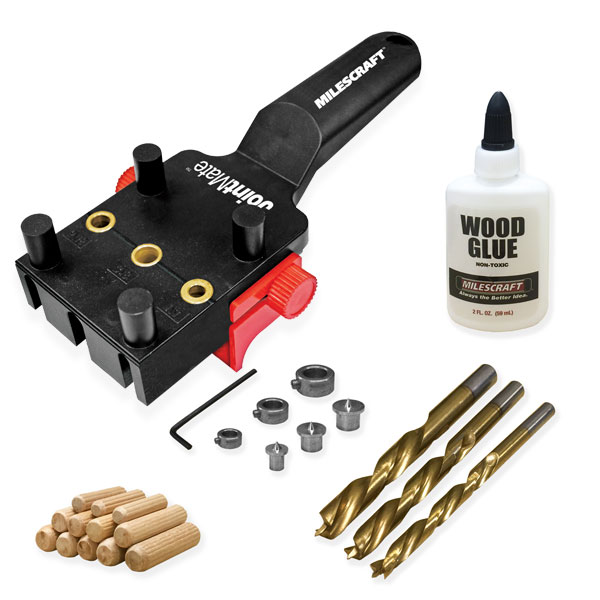

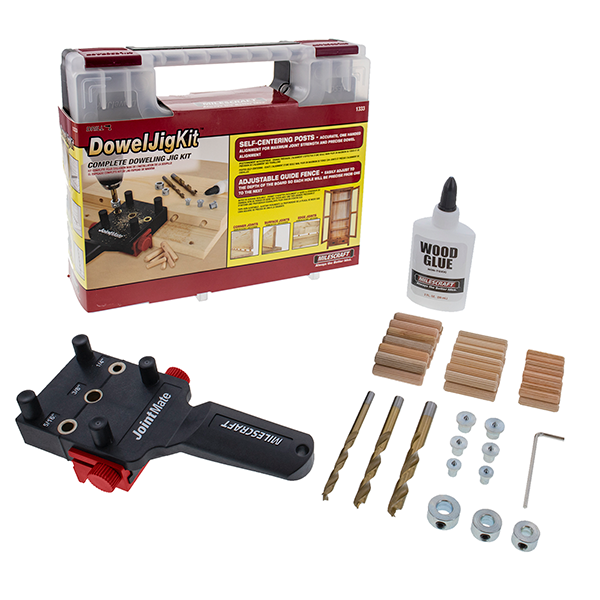

    JointMate, (62) Dowel Pins, (6) Dowel Centers, (3) Brad Point Bits, (3) Drill Stops, Allen Wrench, Wood Glue, Heavy-Duty Storage Case
    (82 piece kit)

1333/1383 DowelJigKit Manual (pdf)

Download >>
1333 DowelJigKit™ Overview Video
Average Review:
4.50 out of 5 based on 4 customer ratings

Join the Milescraft community and write a review for this product!


Add a review

  1. 5 out of 5

    (verified owner)

    Fair price and delivered in a timely manner.

  2. 3 out of 5

    Overall a good product. I purchased this item from Amazon. The 1/4″ drill bit has a slight bend that makes for a wobbly drilling experience and a slightly larger hole that makes the dowel wiggle in the hole. THe other bits are fine. Sad that that this one bit ruined an othwise acceptable experience.

  3. 5 out of 5

    (verified owner)

    Very easy to use. Simple , straight forward.

  4. 5 out of 5

    (verified owner)

    Haven’t used yet
