1309/1359 - DowelJigKit

Build or repair furniture and more, everything you need to get started creating strong and accurate doweled joints.

$20.99

SKU: 1309/1359 Categories: ,
View Replacement Parts
<< Back
DowelJigKit - Replacement Parts

||| Details

DowelJigKit contains everything you need to get started creating strong and accurate doweled joints. The self-centering jig and adjustable fence allow for precise dowel alignment and maximum joint strength. Use with wood boards from 1/2″ to 1-1/2” thick. Now you can perform one-handed alignment and skip the hassle of measuring and marking when drilling corner or edge joints.

Dowel Jig Kit Featuring JointMate

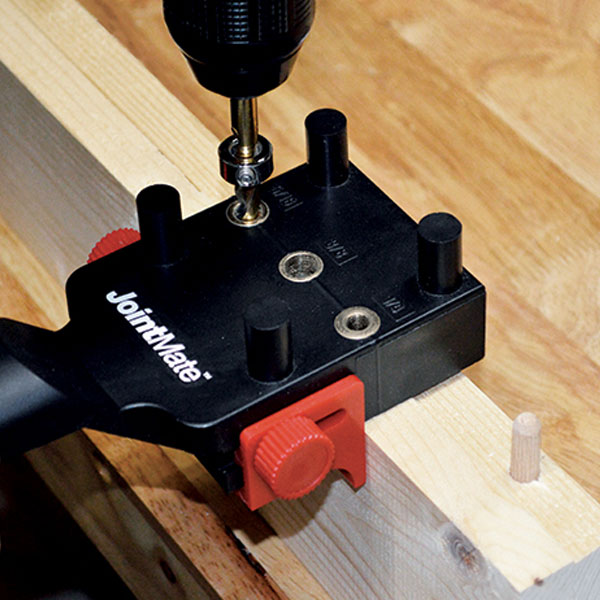

  • JointMate dowel jig allows for quick and accurate doweled corner, edge or surface joints
  • Self-centering dowelling jig and adjustable fence allow for precise dowel alignment for maximum joint strength

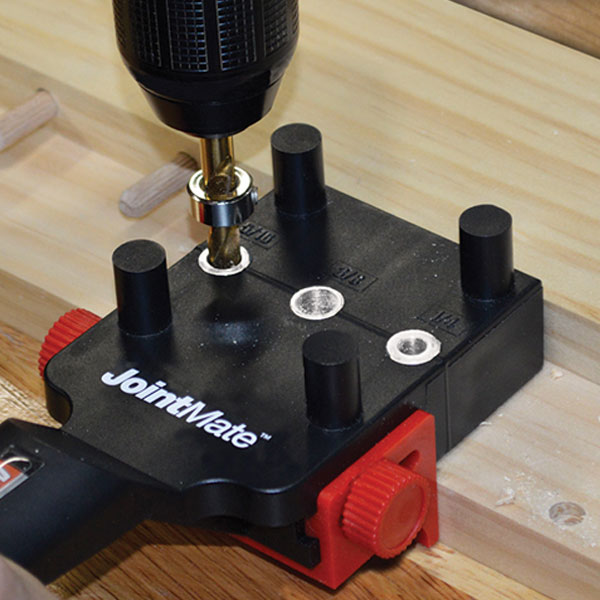

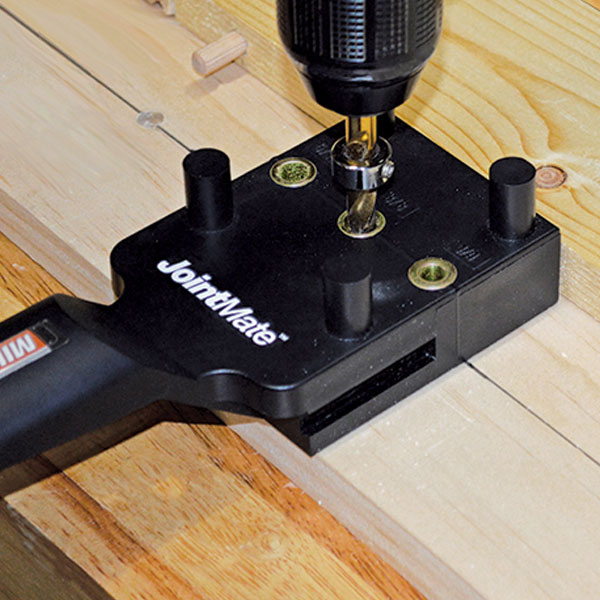

  • Metal bushings ensure accurate alignment when drilling for perfectly positioned dowels
  • Minimal set-up with no exposed or covered mechanical fasteners
  • The dowel jig kit works with 1/2″ to 1-1/2” thick lumber

Steel Dowel/Tenon Centers

  •  For durable and accurate location marking of dowel holes or in the second board being joined

Fluted Hardwood Dowel Pins

  • Chamfered ends add strength and endurance to your joined surfaces
  • Includes 3 sizes – 1/4”, 5/16”, 3/8”

Brad Point Drill Bits

  • Bits ensure pinpoint accuracy
  • Includes 3 sizes – 1/4”, 5/16”, 3/8”

Steel Drill Stops

  • For durable performance
  • Includes 3 sizes – 1/4”, 5/16”, 3/8”

JointMate Chart

 WARNING: Cancer and Reproductive Harm. For more information go to www.P65Warnings.ca.gov/product

  • Drill Bushings, Stops, Bits, and Pin Sizes

    1/4”, 5/16”, 3/8”

  • Minimum Board Width (not thickness) for 1/4" & 5/16" bushing

    2"

  • Minimum Board Width (not thickness) for 3/8" bushing

    3-1/4"

  • Closest distance for dowel from board end (for 1/4" and 5/16" bushing)

    1-1/8"

  • Closest distance for dowel from board end (for 3/8")

    1-5/8"

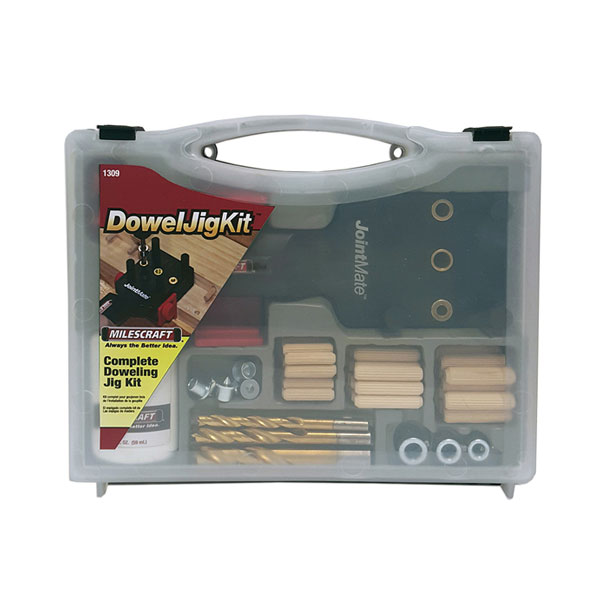

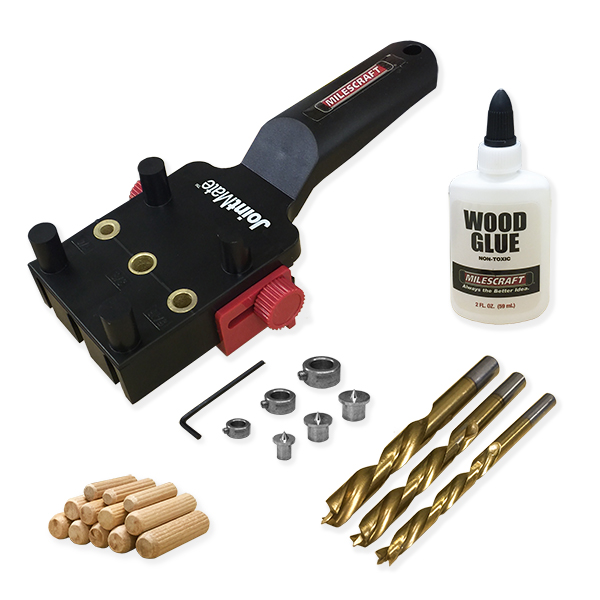

  • Includes

    JointMate, Dowel Pins, Dowel Centers, 3 Brad Point Bits, 3 Drill Stops, Allen Wrench, Wood Glue, Storage Case
    (82 piece kit)

  • JointMate Body Material

    ABS Plastic

  • Weight

    1.86 lbs

1309/1359 DowelJigKit Manual (pdf)

Download >>
1309/1319 Video – Featuring JointMate From Milescraft
WATCH NOW >>
Average Review:
4.83 out of 5 based on 6 customer ratings

Join the Milescraft community and write a review for this product!

WRITE A REVIEW>>

Add a review

  1. 5 out of 5

    The #1309 DowelJigKit is a must have. Open the lid to a complete array of parts, and tools.

    Pros: The JointMate is easy to use, and is accurate.

    Cons: None

    Fred
    Northbrook, IL

  2. 5 out of 5

    Just got this product, and after opening it up I was shocked at how well packaged the kit was. I received everything, including in the kit. The product is well made and is great for starters into woodworking. I am very pleased with this product and I can’t wait to start joining wood in my workshop. If your interested in this product, I would definitely recommend you get it!

  3. 4 out of 5

    Overall a nice product. It could be packaged a little better as the case is very weak. Very simple and self explanatory which is key in my opinion. Comes with everything you need to start doweling at half the cost comparing to competitors.

  4. 5 out of 5

    I was looking for a easy and reliable solution to join multiple oak boards together to create custom shelving. This Milescraft Dowel Jig Kit was the answer. I was so happy with the way that it performed throughout my whole project. It delivered consistent and accurate results. Using this kit cut down on my production time, which was an added value. The kit comes with everything you need to get started. I suggest using this kit for your next joining project.

  5. 5 out of 5

    This is the easiest dowel Jig I’ve ever used. The kit gives you everything you’ll need to get started and the jig is easy to assemble. The jig allows a person to do angled dowels and gives you the opportunity to place the board in different positions. Very nice kit.

  6. 5 out of 5

    (verified owner)

    Exactly what I needed.
