A Portable Drill Guide For Use Almost Anywhere

Not for US Style Drills, Only Euro Style Drills with 43mm neck Ø

$34.99

Out of stock

SKU: 1368 Categories: ,
View Replacement Parts
<< Back
DrillMate™ (for 43mm Ø) - Replacement Parts

||| Details

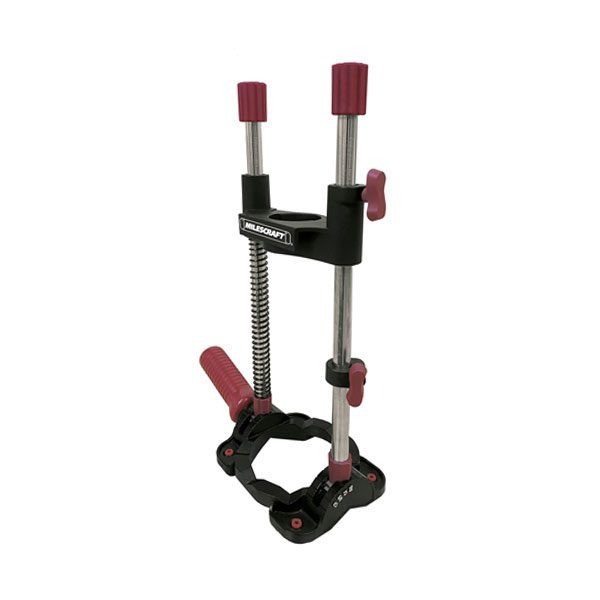

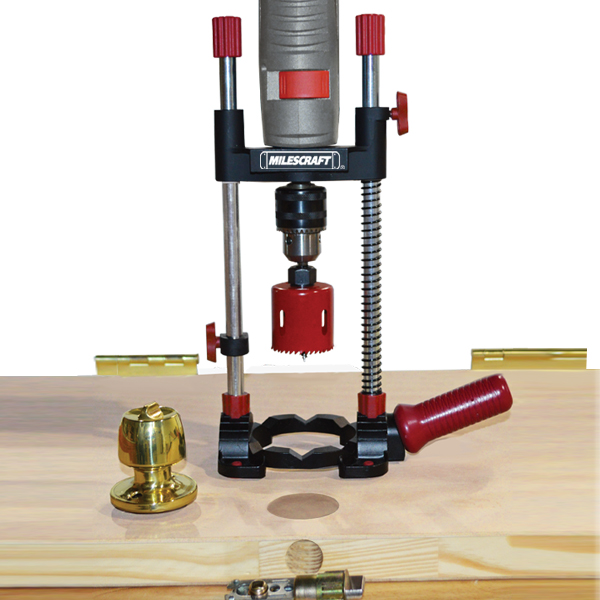

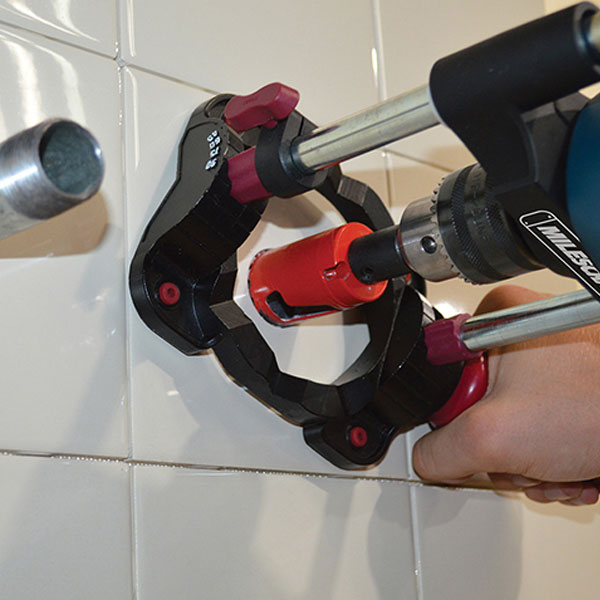

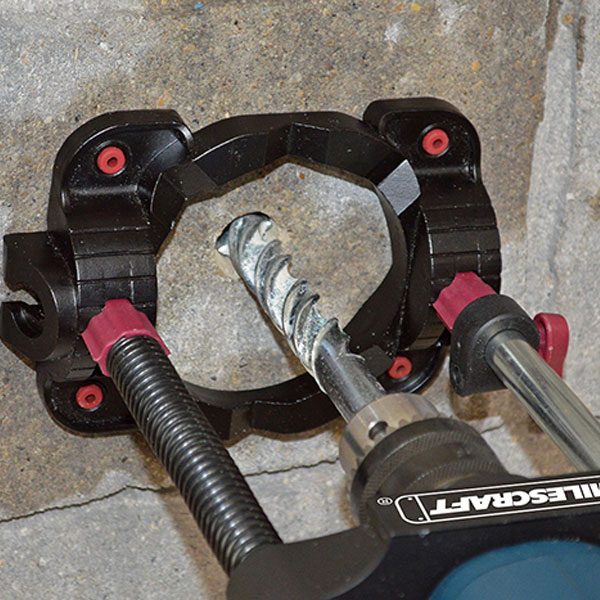

A portable drill stand for use almost anywhere, now you can drill straight holes all the time. With the DrillMate™ drilling straight or angled holes, drilling on the edge of a board or even round stock has never been easier. This all-metal construction DrillMate™ drill guide provides the precision of a drill press with the ease of a hand drill.

Metal Head

  • Accepts Euro style drills with 43 mm collar, not for use with US drills without neck

*For US drills with no neck, Milescraft offers the 1318 DrillMate™

Innovative Metal Base with Angle Readout

  • Self-centering base

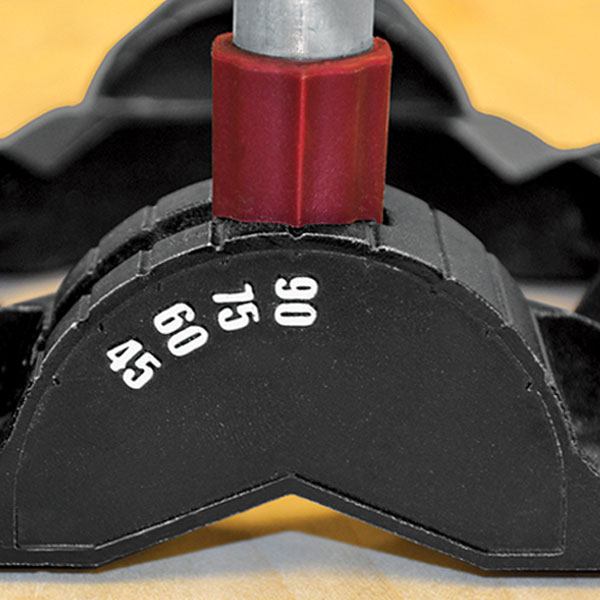

  • Angle readout for setting drilling angles to 45°, 60°, 75° and 90°
  • V-groove for drilling on round stock
  • Non-slip TPE feet, prevent slipping and marring on the work surface
  • Mounting holes for mounting with screws when needed

Metal Angle Adjusters

  • Allows you to easily lock your selected drilling angle into place

Adjustable Stop Collar

  • For precise, repetitive drilling

Auxiliary Handle

  • Can be mounted in a fixed position on the base for maximum support no matter what drilling motion you are doing

 WARNING: Cancer and Reproductive Harm. For more information go to www.P65Warnings.ca.gov/product

  • Material

    All Metal Body

  • Guide Head Inside Diameter

    1-3/4" (43mm)

  • Guide Head Height

    1" (25mm)

  • Compatible with

    Euro style drills with 43 mm collar

  • Base

    5.5" (140mm) x 4.25" (108mm)

  • Base Opening

    3.5" (90mm) diameter

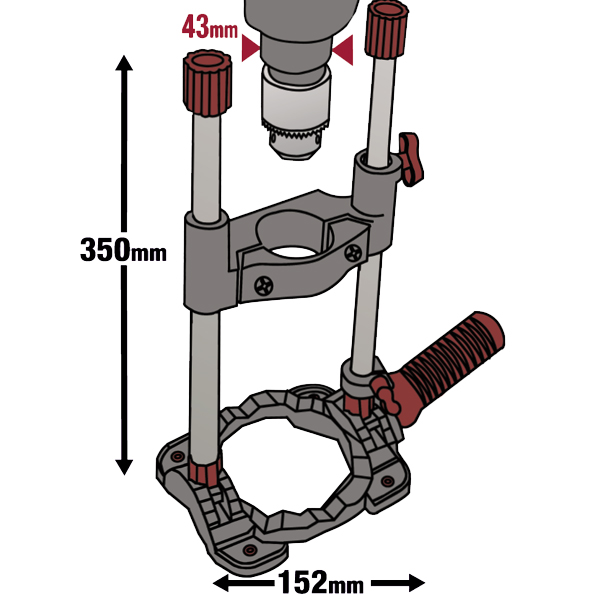

  • Overall Height

    14" (355mm)

  • Guide Bar Diameter

    .55" (14mm)

  • Inside Distance Between Guide Bars

    3.98" (101.2mm)

  • Weight

    3.56 lbs

1368 DrillMate Manual – Metric (pdf)

Download >>
Average Review:
5.00 out of 5 based on 3 customer ratings

Join the Milescraft community and write a review for this product!

WRITE A REVIEW>>

Add a review

  1. 5 out of 5

    I love this tool. I can’t believe how much I use it. It’s so damn convenient and drills perfectly straight. Well made, sturdy, and handy. Can’t beat it for $30. Must own tool!!!

  2. 5 out of 5

    (verified owner)

    Needed a direct drive from my drill.

  3. 5 out of 5

    (verified owner)

    Great tool for the price.

What is the largest diameter hole saw one can use to make a 45º angle cut with the DrillMate?

For a 45° angle cut, the largest hole saw that can be used is 1-5/8″.

What is the best way to drill large holes with the DrillMate?

If you are using a large diameter bit, for safety and accuracy it is recommended to clamp the jig.

Can the 1318 drill guide head be swapped out for the drill holder of the 1368 DrillMate?

Yes, the guide heads can be swapped.

What are the differences between the 1318 DrillMate and 1368 DrillMate?

There are a few differences between the two DrillMates. The main difference is how the drill attaches to the unit. The drill guide head on the 1318 DrillMate is compatible with 3/8” and ½” drills and the drill chuck connects to the shaft of the DrillMate. Whereas 1368 accommodates drills with a 43mm collar and this mounts to the head, this unit does not have a chuck and uses the drills chuck instead. Secondly, the 1368 guide head can be locked with the s-knob; 1318 does not have this feature.

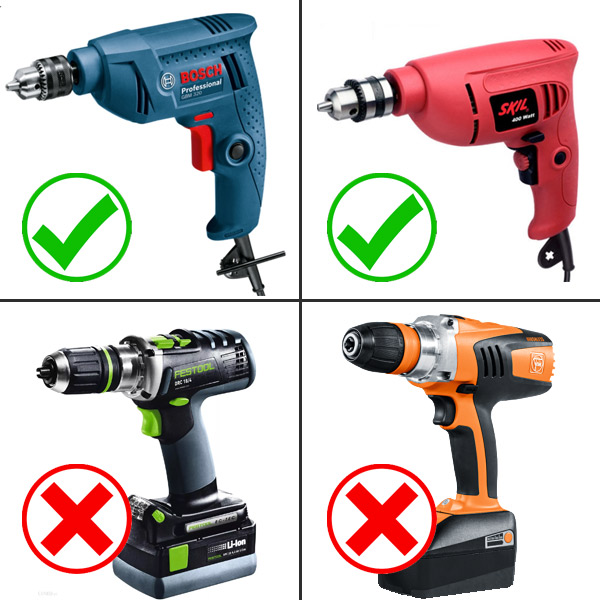

To use the #1368 you must have a drill with a 43mm collar, as shown below.

1368 DrillMate

What type of grease can be used to lubricate the guide bars of the DrillMate?

Common lithium grease.

Why isn't my bit penetrating the wood?

If you are trying to go through thicker material, the spring needs to be removed as the spring limits the travel.

Why are the holes slightly off angle when using a Forstner bit with the DrillMate?

When using the DrillMate with a Forstner bit or boring bit, you will need to remove the spring to reach proper drilling depth.
