1224/1274 - Edge&MortiseGuide™

Perfect for mortises, rabbets, dados, edge finishing and more!

$34.99

SKU: 1224/1274 Categories: ,
View Replacement Parts
<< Back
Edge&MortiseGuide™ - Replacement Parts

||| Details

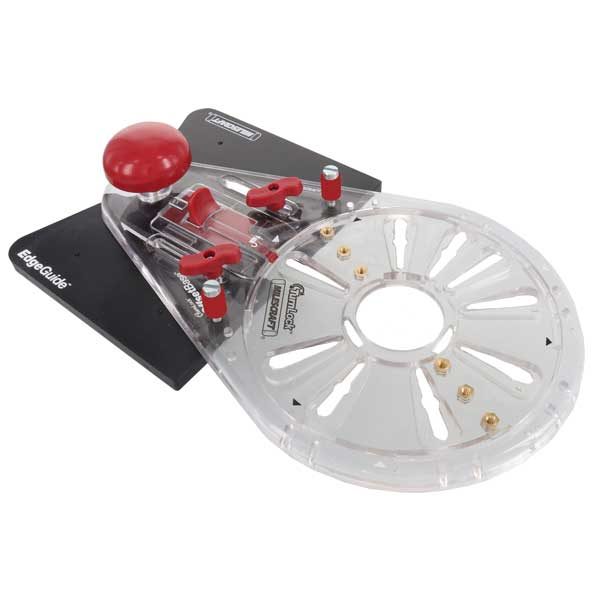

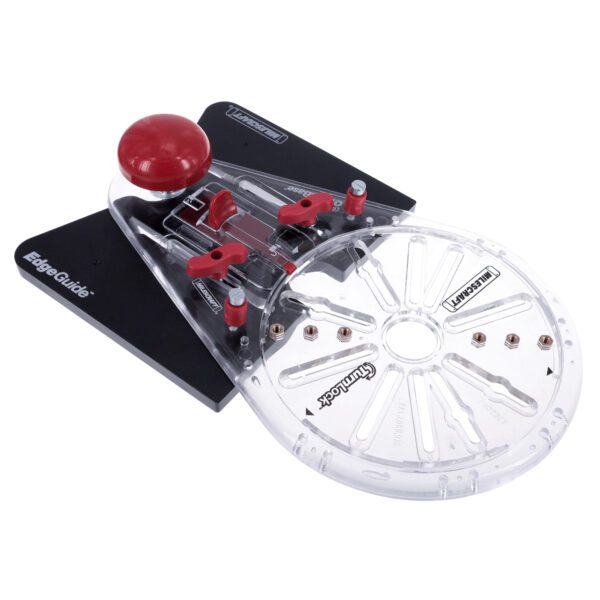

The Edge&MortiseGuide™ is perfect for mortises, rabbets, dados, edge finishing and more! The Edge Guide has a large surface area for straight and curved edges for radial cuts. The Offset Base is ideal for narrow boards, routing edges, and edge profiles. Included are two non-marring mortising pins for cutting mortises in varying board thicknesses.

Edge Guide

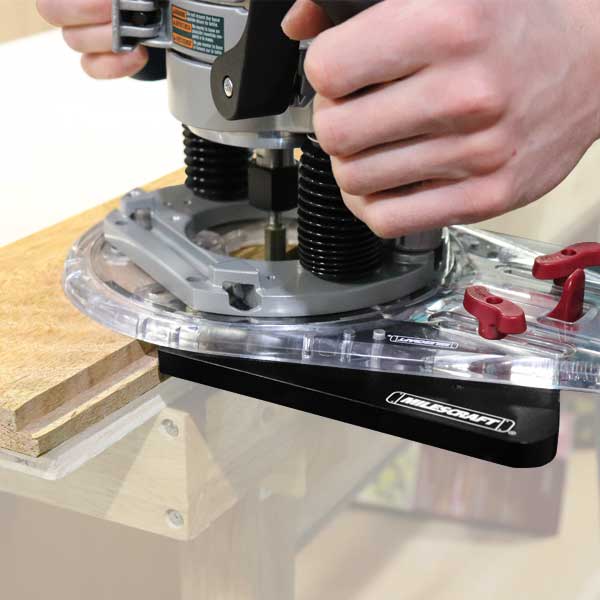

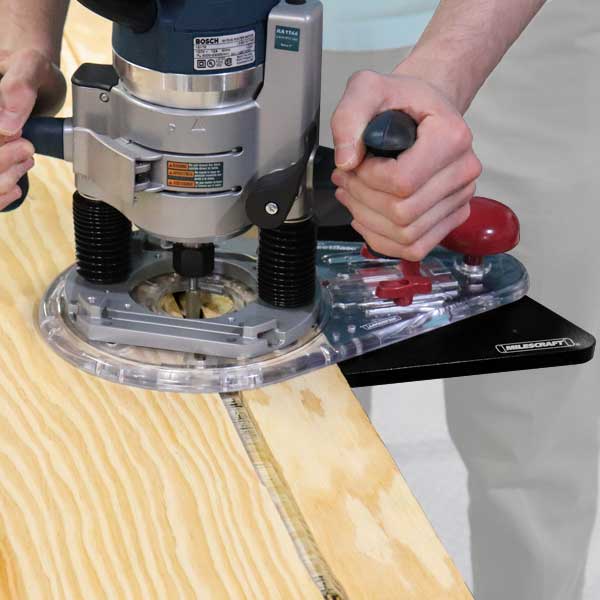

  • Can be used for many projects that require dado cuts, grooves, and rabbets

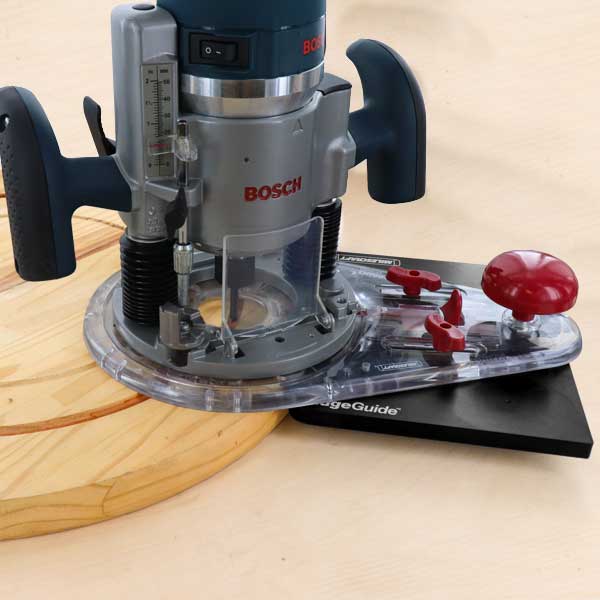

  • Compatible with plunge and fixed base routers

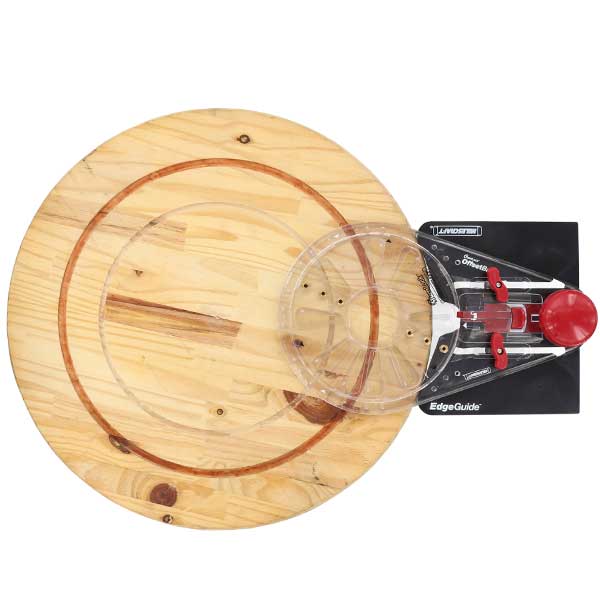

  • Large surface area for straight and curved edges for radial cuts
  • Straight edge has a maximum travel of approximately 5-1/2″

Mortise Guide

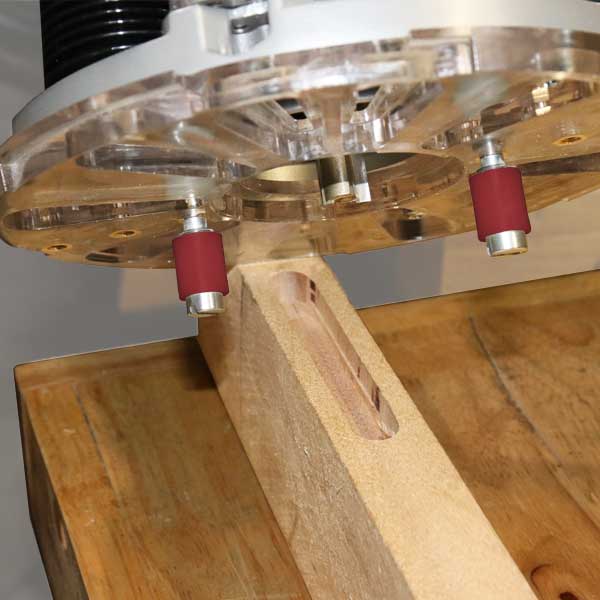

  • Includes two non-marring mortising pins for cutting mortises into varying board thicknesses

TurnLock™ BasePlate

  • Clear BasePlate for visibility of work area
  • Made from tough polycarbonate
  • 3 mortise locations for different board thicknesses
  • Centering pin included for fast accurate BasePlate installation
  • Includes common mounting screws for attachment to most routers

Offset Base

  • Built-in storage for mortise pins
  • Ideal for narrow boards, routing edges, and edge profiles
  • Clear 13″ offset base provides added stability during edge routing
  • Oversized handle is easy to grip providing superior control of your router
  • Thumb-activated lock/release mechanism enhances speed and safety when changing tools

For more information on our universal base plate, see our compatibility chart and template.

 WARNING: Cancer and Reproductive Harm. For more information go to www.P65Warnings.ca.gov/product

  • Includes

    Edge Guide, Base Plate, Offset Base, Centering Pin, 5/8" Bushing, Mortise Pins, Mounting Hardware, and Manual.

  • Material

    Polycarbonate and ABS

  • Weight

    2 lbs.

1224-1274 Edge&MortiseGuide Manual (pdf)

Download >>
1224-1274 Edge&MortiseGuide Video
WATCH NOW >>
Average Review:
4.60 out of 5 based on 10 customer ratings

Join the Milescraft community and write a review for this product!

WRITE A REVIEW>>

Add a review

  1. 5 out of 5

    (verified owner)

  2. 5 out of 5

    (verified owner)

    EXCELLENT TOOL…WORKS AS EXPECTED.

  3. 5 out of 5

    (verified owner)

    Fits but yet to try it.

  4. 5 out of 5

    (verified owner)

    Fantastic product!

  5. 5 out of 5

    (verified owner)

    Very satisfied, good quality.

  6. 5 out of 5

    (verified owner)

    Very good quality and and finished.

  7. 5 out of 5

    (verified owner)

    Utile et précis

  8. 1 out of 5

    (verified owner)

    Poor quality! I Screwed the red knob on and it cracked where the threads are. I just put enough pressure on it to snug it up and it split! Plastic that gets a metal bolt in it should have a metal sleeve in it to be a quality item, not just threaded plastic. Still trying to figure out how to jury rig it to still be able to use it.

    • George, thank you for your comments. We have sent you an email regarding the broken part, we are happy to issue a replacement.

  9. 5 out of 5

    Much better than the Rb7 router base at 1/3 the cost easy to install on any router. Rb7 by infinity wouldn’t fit on my router. Excellent tool.

  10. 5 out of 5

    (verified owner)

    For use with my routers.

Is my compact/palm/trim router compatible with the base plate?

Base plate compatibility chart and template.



Compatible Compact/Palm/Trim Routers:

Bosch/Colt PR20EVSPK
Bosch GFK125CE
DeWalt DCW600B
DeWalt DWE6000
DeWalt DWP611
Ridgid R2401
Ridgid R24012
Ridgid R86044B
Ridgid R860443B
Ryobi P601

Not compatible w/o plunge attachment:

Makita RT0700C (requires a plunge attachment for installation on the base plate)
Makita RT0701C (requires a plunge attachment for installation on the base plate)
Makita XTR01 (requires a plunge attachment for installation on the base plate)
Bosch/Colt PR20EVS (requires a plunge attachment for installation on the base plate)
Milwaukee 2723-20 (requires Milwaukee plunge attachment 48-10-5601, will align with slots C and G.).

Not compatible:

Porter Cable PC450
Bauer 19121E-B

Can I modify the base plate to fit my router?

In some instances, NOT ALL holes in the router’s base will match the mounting pattern. Only two diagonal holes matched to a router’s base are required (as a minimum) for proper installation and operation. You may decide to modify an existing slot or add hole(s) to better suit your router. The screws supplied may not fit your router. If you supply your own screws, DO NOT use “countersink” head styles.
