8405 - FramingSquare500 (Imperial)

Layout a square, right angle or measure angles


SKU: 8405 Category:

||| Details

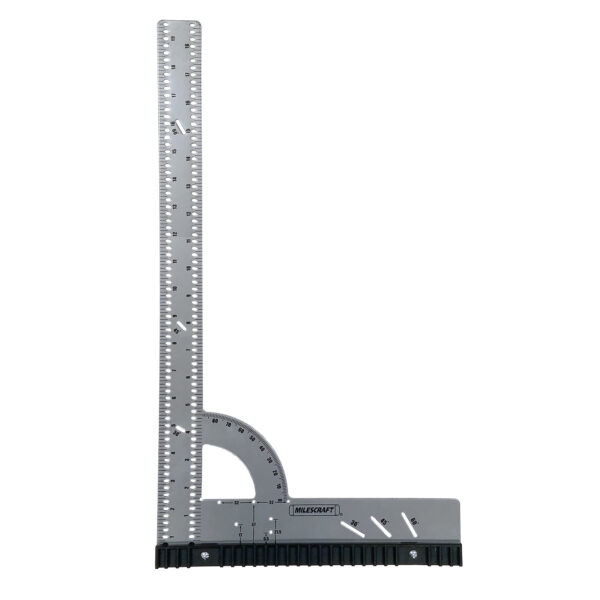

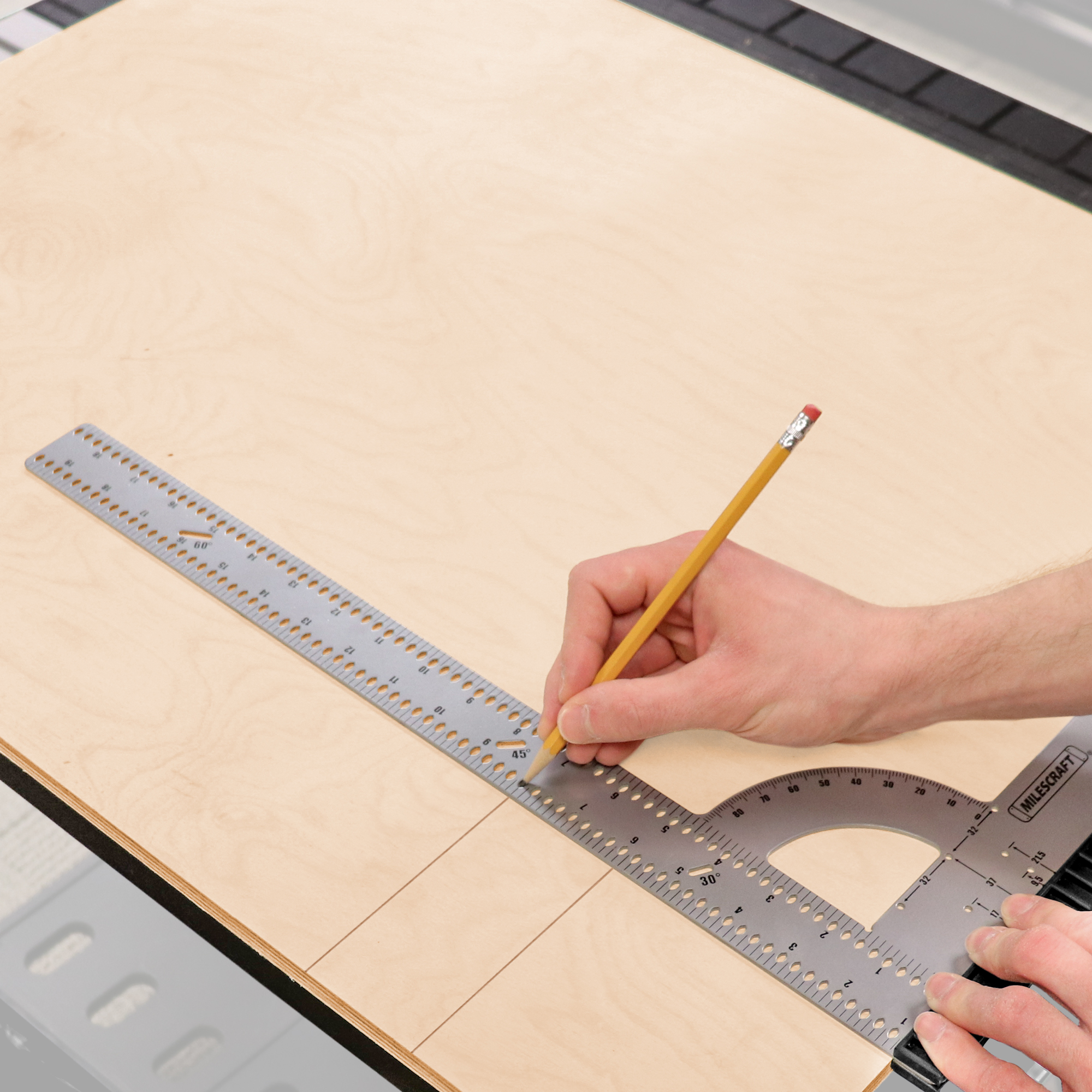

This imperial FramingSquare500 is used to layout a “square” or right-angle. It can also be used to measure angles with the built-in easy angle readout.

FramingSquare500 Features

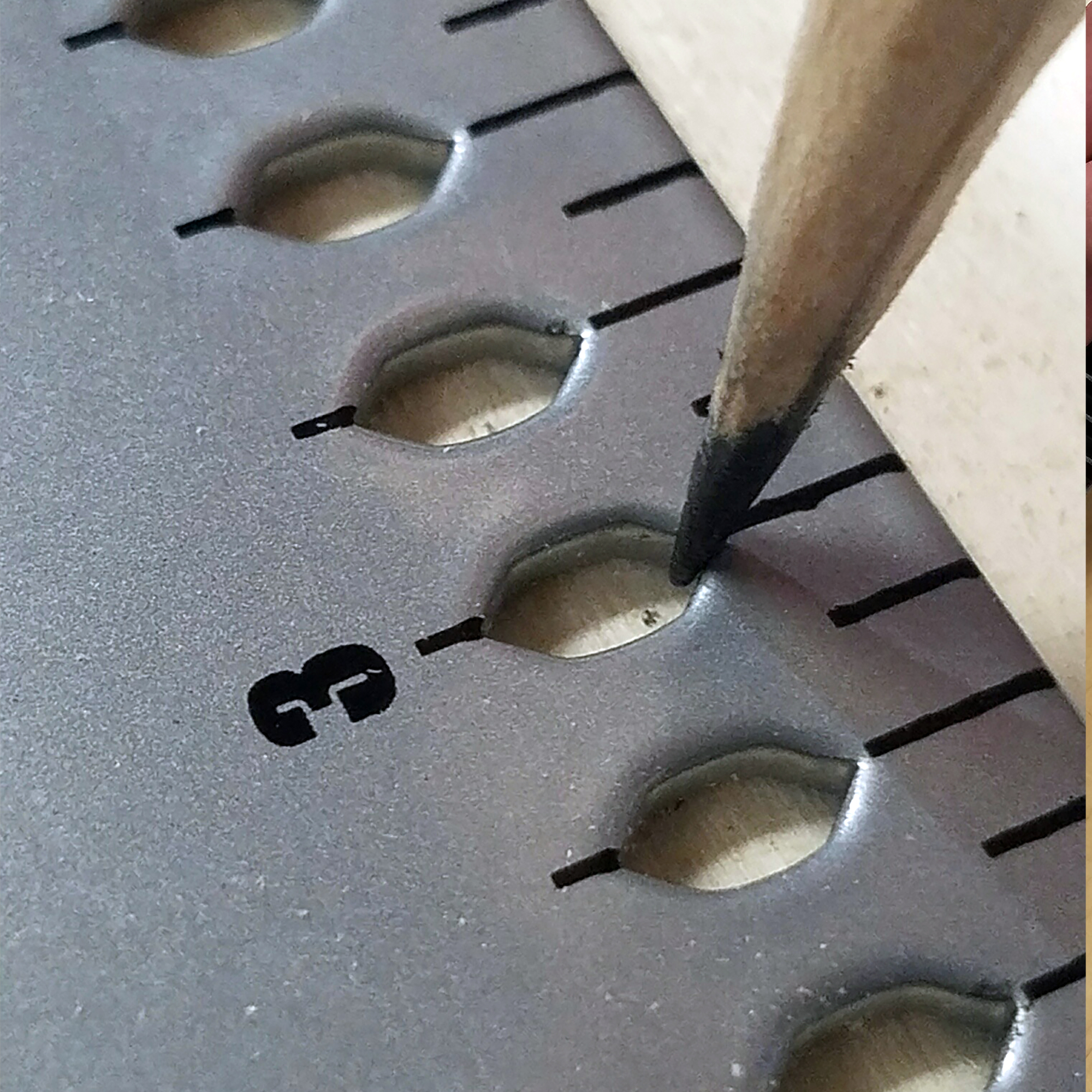

  • Reference measurements for precise woodworking
  • Use to layout shelf-pins and rafix connectors
  • Multi-functional unit

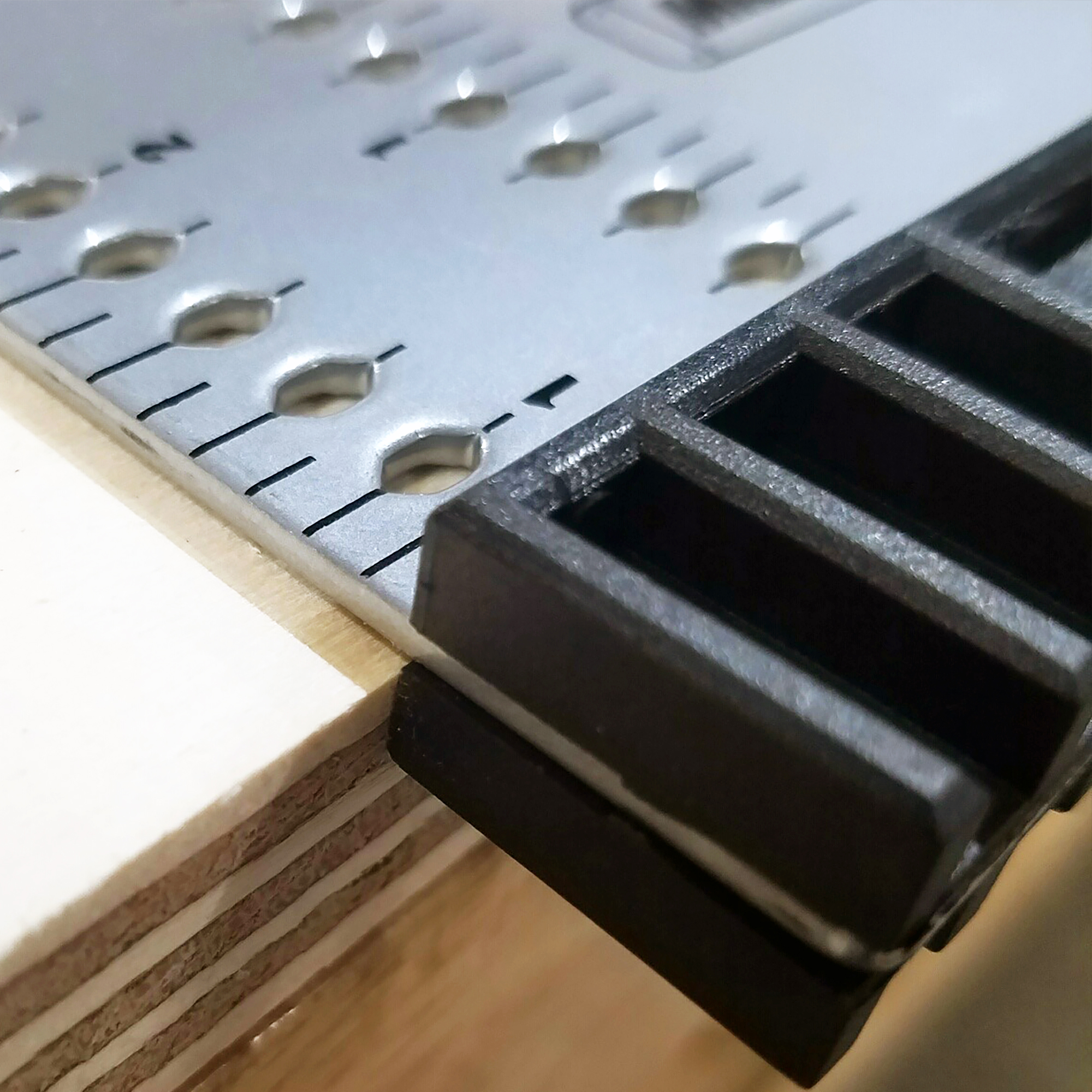

  • Built-in retractable edge guide

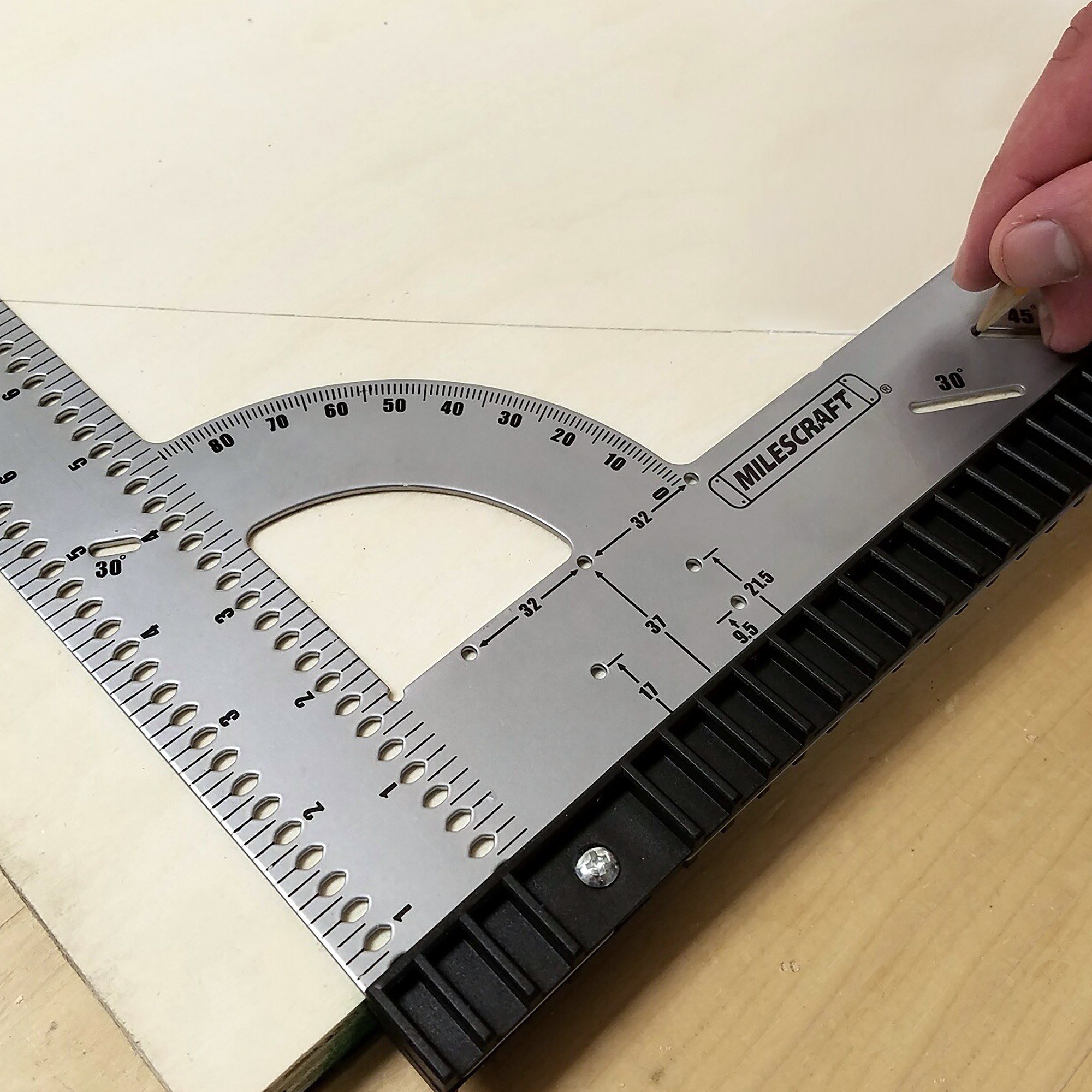

  • Includes euro style hinge mounting holes

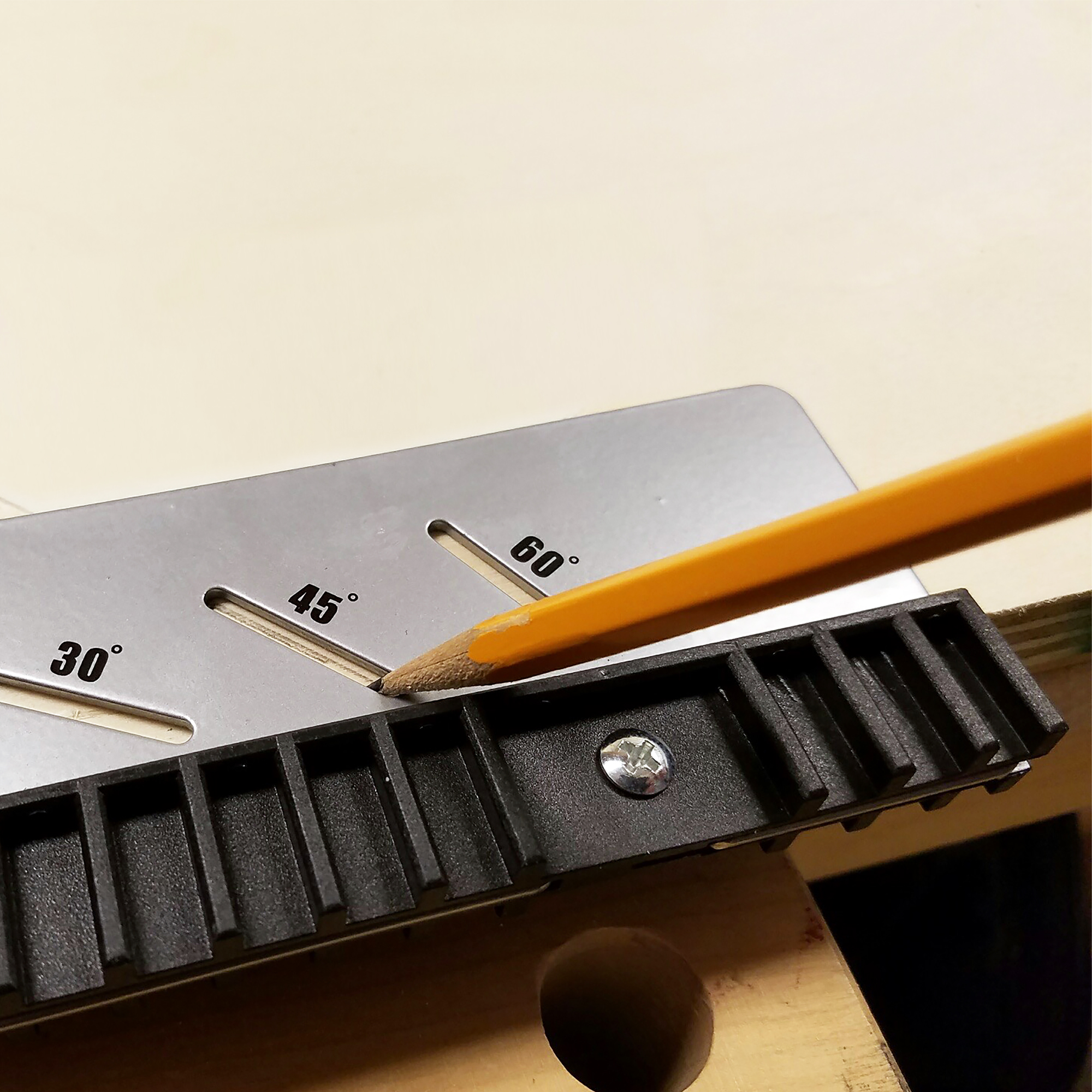

  • Has three quick angle finders for 30°, 45°, and 60° angles

 WARNING: Cancer and Reproductive Harm. For more information go to

  • Dimensions

    20" (500mm) x 11" (280mm)

  • Material

    Metal and plastic

  • Weight

    1.3 lbs

8404/8405/8454/8455 FramingSquares Manual (pdf)

Download >>
FramingSquares Video
Average Review:
5.00 out of 5 based on 3 customer ratings

Join the Milescraft community and write a review for this product!


Add a review

  1. 5 out of 5

    (verified owner)

    love this framing square. makes running multiple line fun

  2. 5 out of 5

    (verified owner)

    I got all of theese accurate and good to have around the shop but I haven’t had a chance to learn how to use the protractor part I’m sure I will I have lots of stuff from milescraft all seems well made and thought our

  3. 5 out of 5

    (verified owner)

    Options are limitless
