1340 - HardwareJig™

Reversible Design Hardware Jig for Quick Installation of Left and Right Drawer and Cabinet Handles, Knobs & Pulls


||| Details

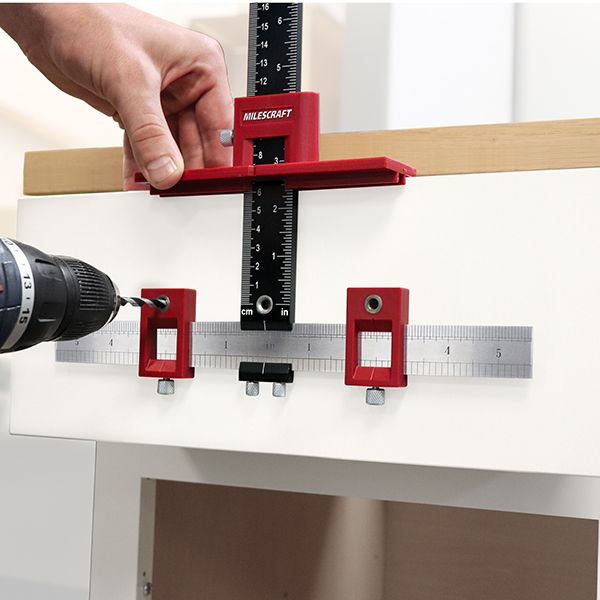

The Milescraft HardwareJig™ is a simple and accurate way to repeatedly position, drill, and mount cabinet drawer and door hardware.  The adjustable design allows you to quickly reconfigure the jig to install knobs, handles, and pulls.

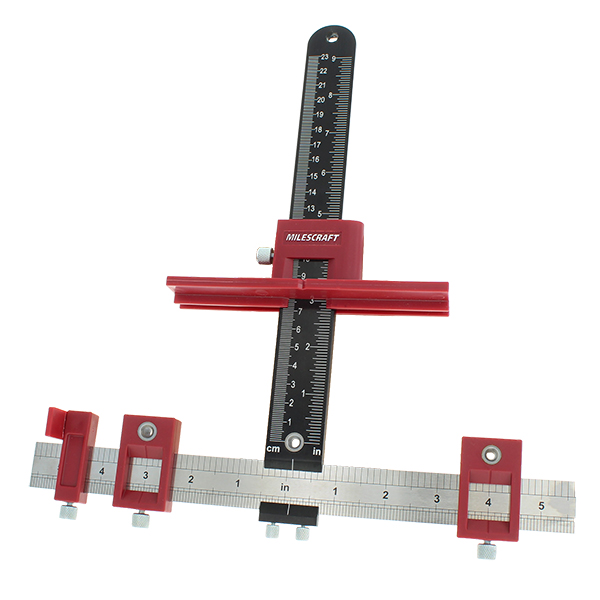

HardwareJig™ Features:

  • Metal ruler construction

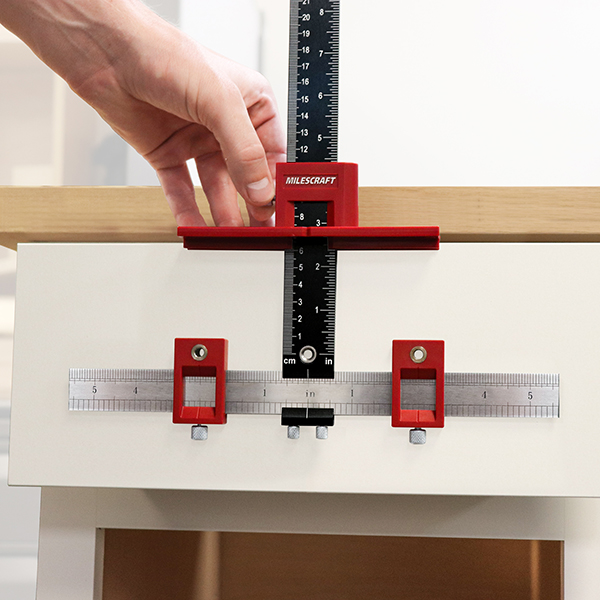

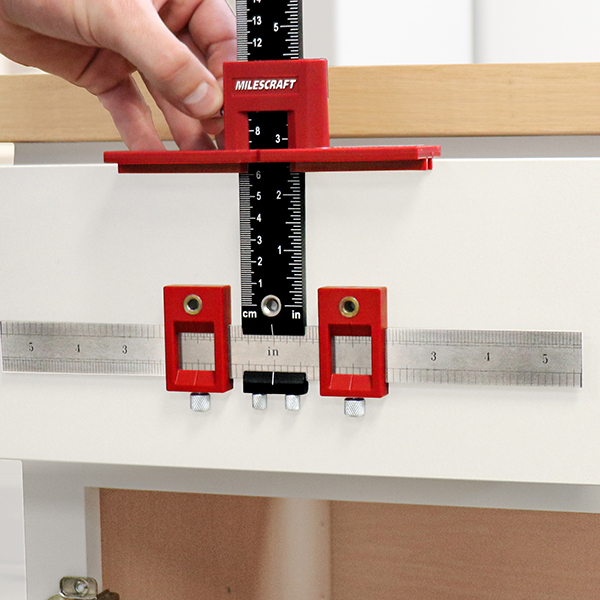

  • Adjustable sliding stops lock in place to align jig and allow repeated positioning on multiple pieces
  • Reversible design allows you to transfer jig from left door to right with a simple flip, keeping hardware position locked in
  • Three steel 5mm (3/16”) bushings create accurate, straight holes and are designed to last

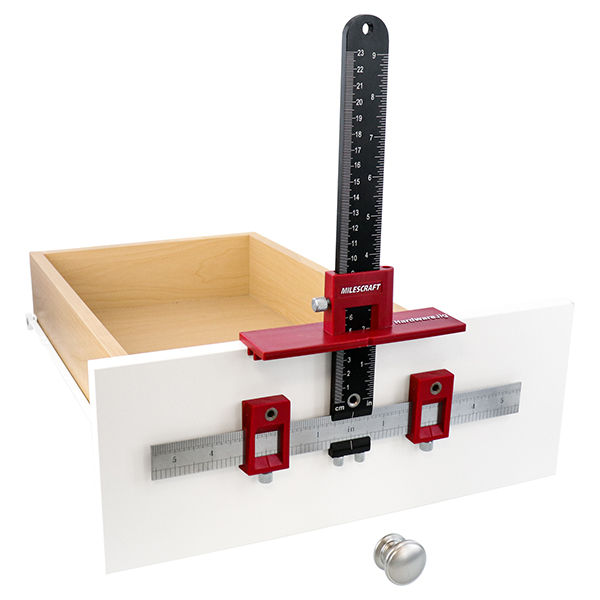

  • Centering notches align HardwareJig™ to center marks for perfect placement when installing drawer knobs

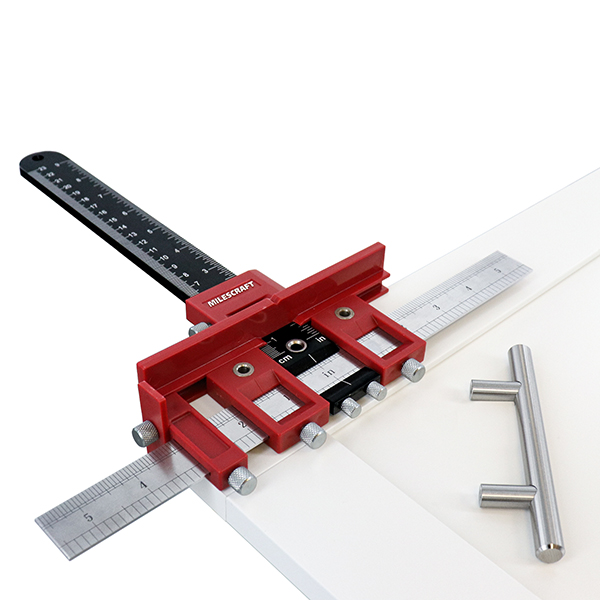

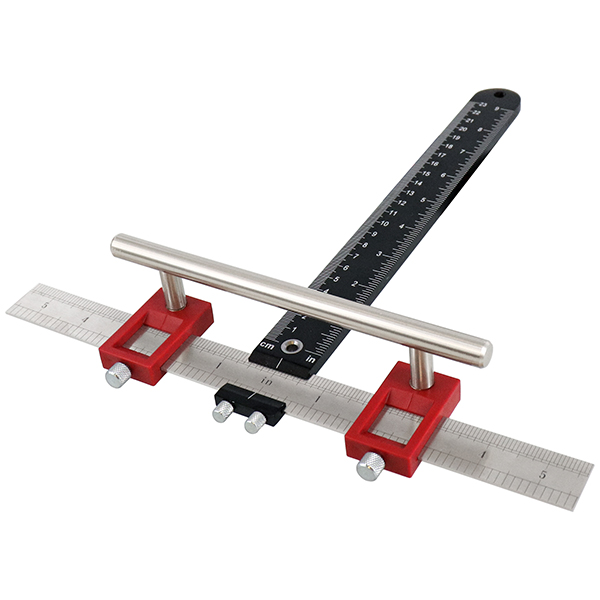

  • Install pulls and handles from 1-1/4” to 10” long

 WARNING: Cancer and Reproductive Harm. For more information go to

  • Includes

    5mm (3/16") Drill Bit

  • Drill Bit

    5mm Brad Point

  • Scale

    Imperial and Metric

  • Markings

    1/16" and 1mm

1340 HardwareJig Manual (pdf)

Download >>
1340 HardwareJig™ Overview Video
Average Review:
5.00 out of 5 based on 2 customer ratings

Join the Milescraft community and write a review for this product!


Add a review

  1. 5 out of 5

    (verified owner)

    The jig worked well.

  2. 5 out of 5

    (verified owner)

    Made cabinets a snap
