1220 - HingeMate350

The Complete Drop-in Template System for Routing Hinge, Strike and Latch Plate Mortises with Router Bit, Hinge Bit & Corner Chisel included.

$36.99

SKU: 1220 Category:
View Replacement Parts
<< Back
HingeMate350 - Replacement Parts

||| Details

Increase security and privacy in your home by replacing doors without damaging the door or jamb with the HingeMate350. By routing matching mortises for hinges, strike plates, and latch plates into the door and jamb, you won’t have to tear a hole in the wall just to hang a better wooden door.

Steel Template Frame

  • Durable steel frame with adjustable cams allow for 1-3/4” and 1-3/8” door settings
  • Can be mounted to both the door and jamb

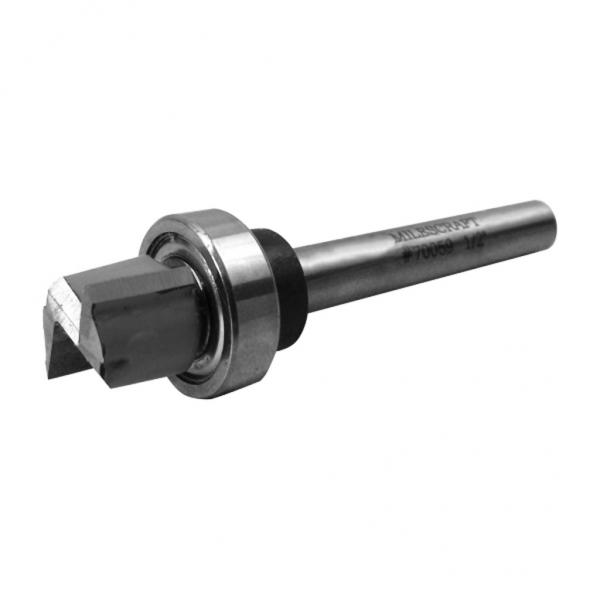

1/2” Router Bit Included

  • Tip made of durable tungsten carbide
  • Router bit with ball bearing eliminates the need for a bushing

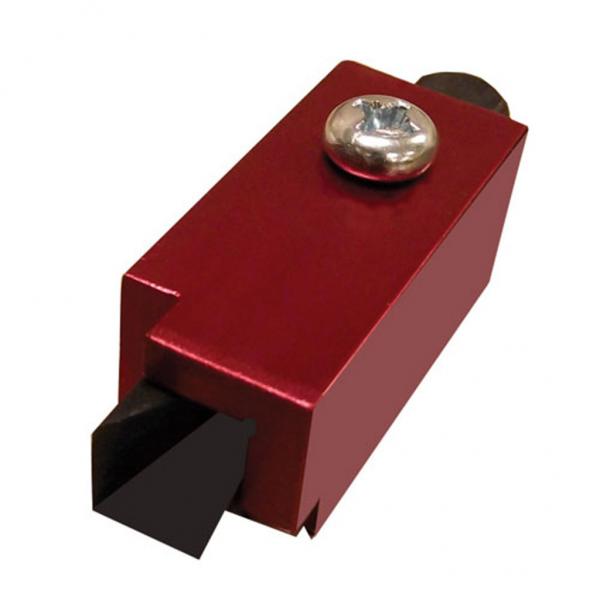

Corner Chisel Included

  • Hardened steel, self-aligning chisel required to mortise 90° hinges, strikes and latches

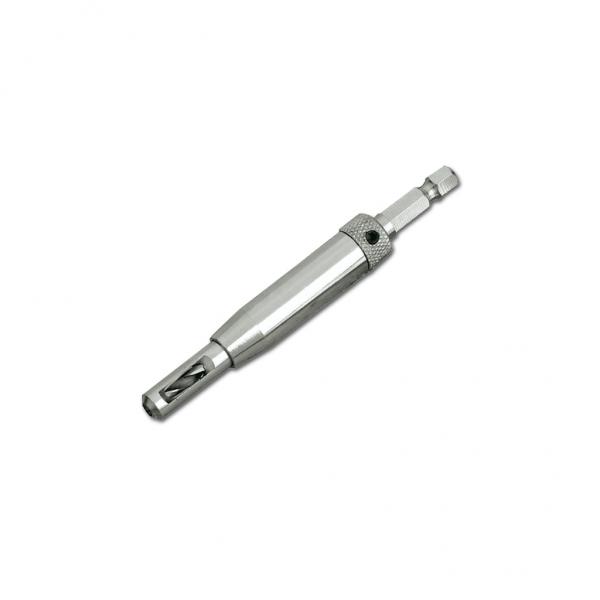

Hinge Bit Included

  • Pre-drill perfectly centered holes for proper alignment of hinges with this spring-loaded, self-centering drill bit

Templates

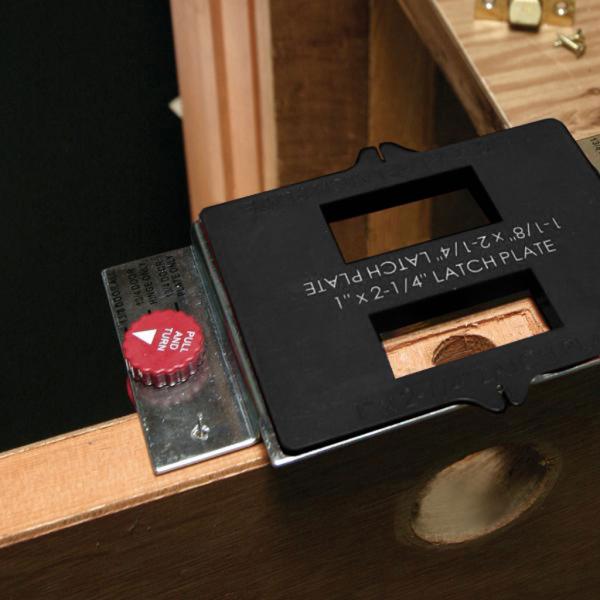

  • Contains templates needed to rout hinge, strike plate, and latch plate mortises
  • Rotate template to achieve 5/8” radius or 1/4″ radius
*Use Corner Chisel to achieve square corners.

 WARNING: Cancer and Reproductive Harm. For more information go to www.P65Warnings.ca.gov/product

  • Template Frame Material

    Steel

  • Template Material

    ABS Plastic

  • Includes

    Corner Chisel, Hinge Bit, and 1/2" Router Bit

  • Hinge Template Sizes

    2-1/2", 3", 3-1/2", 4", and 4-1/2"

  • Strike Plate Template Sizes

    1-1/8" x 2-3/4", and 1-1/2" x 2-1/4"

  • Latch Plate Template Sizes

    1" x 2-1/4", 1-1/8" x 2 1/4", and 1-1/8" x 2-3/4"

  • Weight

    2.12 lbs

1220 HingeMate350 Manual (pdf)

Download >>
1213/1214/1220 HingeMate Video
WATCH NOW >>
Average Review:
4.50 out of 5 based on 2 customer ratings

Join the Milescraft community and write a review for this product!

WRITE A REVIEW>>

Add a review

  1. 5 out of 5

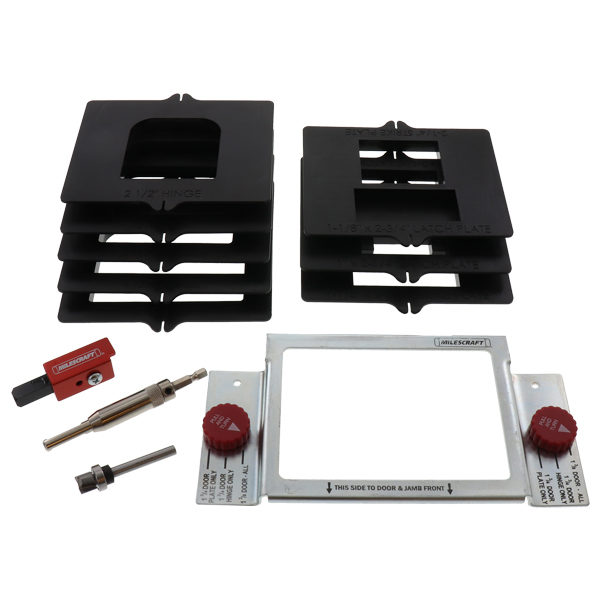

    This set consists of steel template frame which needs to be screwed onto the doors with two screws which are a part of this set. The frame has two knobs which allow the jig to be used with 1-3/4 and 1-3/8 thickness doors. There are 8 plates for different size and types of hinges as well as latches. Plates are made of a plastic which appears to be of a good quality. After selecting the plate matching your hinges and/or your latch you push it into the frame. This creates a template. In this set you will also find a router bit with 1/4″ shank. Bit has a ball bearing which rides on the template. All you have to do is to set the depth of cut with a router and route the groove in the doors. Template can be removed now and hinge or a latch placed in the groove. This set also contains a #8 (9/64″) drill bit which allows you to pre-drill holes for the screws which will hold the hinges or a latch on the doors. There is one more useful tool in this set – corner chisel. If you are using square hinges you need to use it to cut the round corners made by the router bit. Very useful addition!
    All parts are made of adequate materials (mostly metal except for plates) and seems to be able to last for many projects. The manuals are written in easy to follow matter in English, French and Spanish. There are also numerous drawings which illustrate what to do step by step. This set makes hanging doors quite an easy task even for someone who never have done it before.

  2. 4 out of 5

    (verified owner)

    Great templates, and jigs. My only complaint would be to have metal templates.

What do I do if more horizontal depth is required than the thickness selector cam permits?

It may be necessary to remove the thickness selector assembly (red knob, spring, and cam) from each end of the metal frame to permit a deeper location of the frame/template.  Of course, doing this eliminates the automatic parallel alignment capability of the metal plate, so you must measure carefully to be sure the distances to the holes are correct before attaching the plate to the door or frame.  Be sure to re-install the thickness selector cam assemblies to the metal plate when that unusual job is completed, so the parts do not get lost.

What should I do if the stop on the jamb prevents the template frame from going over it?

If the stop on the door jamb exceeds the height of the template frame, you will want to create a shim or spacer to accommodate the additional height that you will need. Please be sure that the router bit will still properly ride along the inside of the hinge template after your spacer is in place.
