Wood Joining

1324 - PocketJig100™

Perfect Pocket Hole Jig for Hard to Reach Areas, Including Repairs


SKU: 1324 Categories: ,
View Replacement Parts
<< Back
PocketJig100™ - Replacement Parts

||| Details

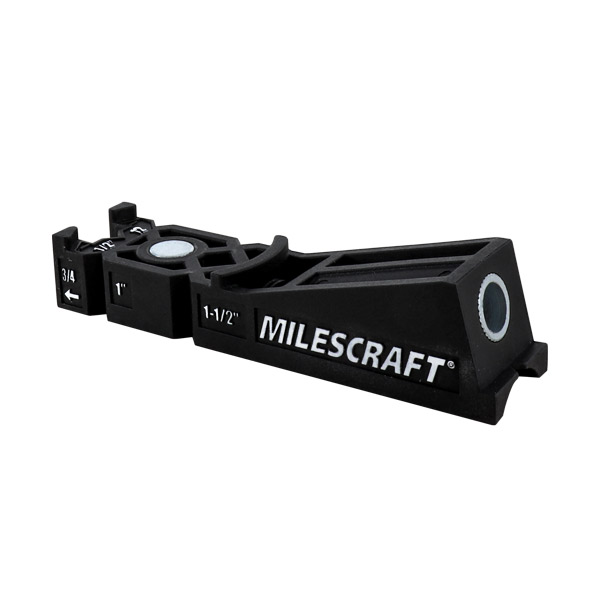

PocketJig100™ pocket hole jig allows you to connect your workpieces in a quick and timely manner or do repairs around your house. Small, compact design allows you to do applications where a small jig is required. Built-in board thickness locations for easy measurement and set-up of your workpieces, virtually eliminating the need for manual measurements. Everything you need to get started with your first pocket holes!

PocketJig100™ – Designed To Make Repairs Simple

  • No fence and the small design allows you to get into some of the smallest places to make repairs to many joints

Hardened Steel 3/8” Drill Bushing

  • For precise and accurate pocket holes every time using the Milescraft PocketBit™
  • Tight tolerances between the bushing and the drill bit, reduce tear-out and create a clean pocket hole on the first try

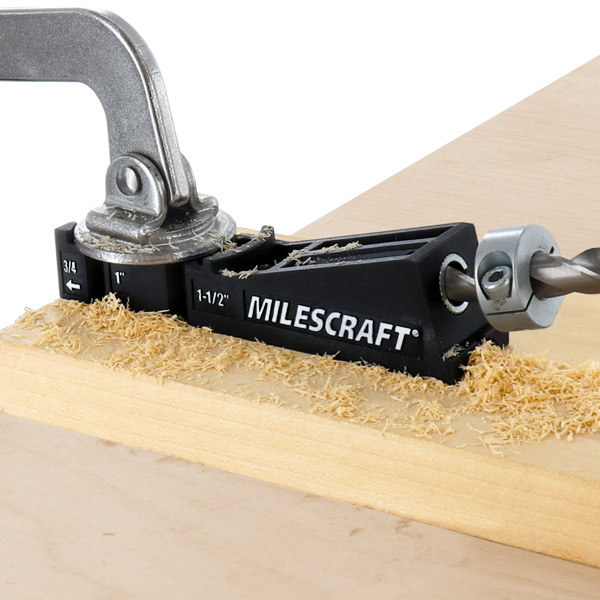

Recessed Clamp Pocket with Magnet

  • Helps to keep the clamp in the same position as you move to different locations
  • With the stronger rare earth magnet, you can easily clamp the jig from one location to another
  • For speed and accuracy, use the Milescraft 3” Face Clamp™

Board Thickness Settings

  • Four common board thickness settings built into the jig: 1/2”, 3/4” 1” and 1-1/2” (12, 19, 27, 38mm)

Convenient Built-in Depth Setting

  • Easily set your bit for the correct drilling depth

3/8″ Anti-Roll, Split Design Stop Collar

  • The split design prevents slipping of the set screw when tightened and prevents the bit from rolling
  • Includes hex key for tightening

3/8″ HSS Step Drill Bit

  • Made from high-speed steel the PocketBit™ with 1/4″ hex shaft is designed to reduce clogging and provide smooth and precise holes

6” Magnetic T20 Star Driver

  • For maximum torque settings without stripping
  • Allows pocket screws to align with maximum precision

 WARNING: Cancer and Reproductive Harm. For more information go to www.P65Warnings.ca.gov/product

  • Jig Body Material

    Reinforced Nylon

  • Clamping Method

    Works with any clamp

  • For use with

    Wood Materials from 1/2" t0 1.5" thick (12 - 38mm)

  • Drilling Angle


  • Driver

    Magnet 6" T20 Torx Driver

  • Drill Bit

    3/8" (9.5mm) HSS Pocket Bit with 1/4" shank

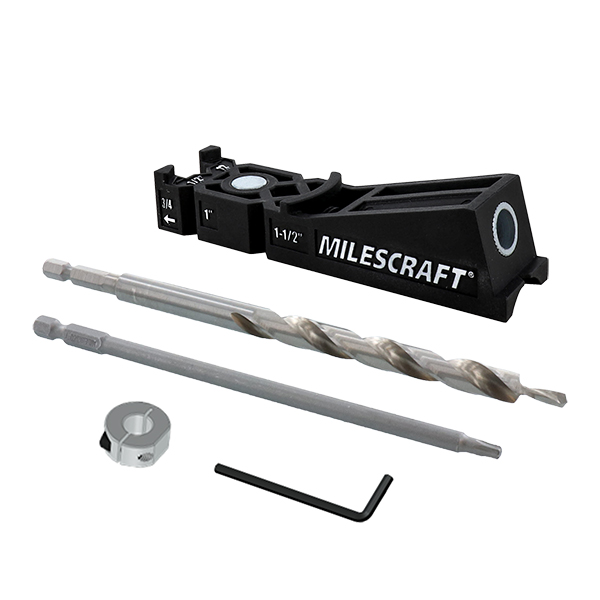

  • Includes

    Single Barrel Pocket Hole Jig, 3/8" (9.5mm) PocketBit™, 3/8" Stop Collar, 6" Magnetic T20 Star Driver, Hex Key, Instruction Manual

1324 PocketJig100 Manual (pdf)

Download >>
1324 PocketJig100 Video
Average Review:
4.83 out of 5 based on 6 customer ratings

Join the Milescraft community and write a review for this product!


Add a review

  1. 5 out of 5

    (verified owner)

    Have yet to use, but looks good

  2. 5 out of 5

    (verified owner)

    As good as Kreg or better.
    A must if you need the strength of a pocket screw.

  3. 5 out of 5

    (verified owner)

    The pocket jig was for a friend, and he’s confirmed that its quality is good & is convenient to use.

  4. 4 out of 5

    (verified owner)

    Prefect spot pocket hole jig

  5. 5 out of 5

    (verified owner)


  6. 5 out of 5

    (verified owner)

    Excellent product at an excellent price

What can be done to prolong the life of my pocket bit?

Always be sure your drill is set to the highest speed and lowest torque and the drill bit is in the bushing before powering up the drill and contacting any wood surfaces.
