Wood Joining

1321 - PocketJig100

Perfect Pocket Hole Jig for Hard to Reach Areas, Including Repairs

$14.99

SKU: 1321 Categories: ,
View Replacement Parts
<< Back
PocketJig100 - Replacement Parts

||| Details

PocketJig100 pocket hole jig allows you to connect your workpieces in a quick and timely manner or do repairs around your house. Small, compact design allows you to do applications where a small jig is required. Built-in board thickness locations for easy measurement and set-up of your workpieces, virtually eliminating the need for manual measurements. Everything you need to get started with your first pocket holes!

PocketJig100 – Designed to make repairs simple

  • No fence and the small design allows you to get into some of the smallest places to make repairs to many joints

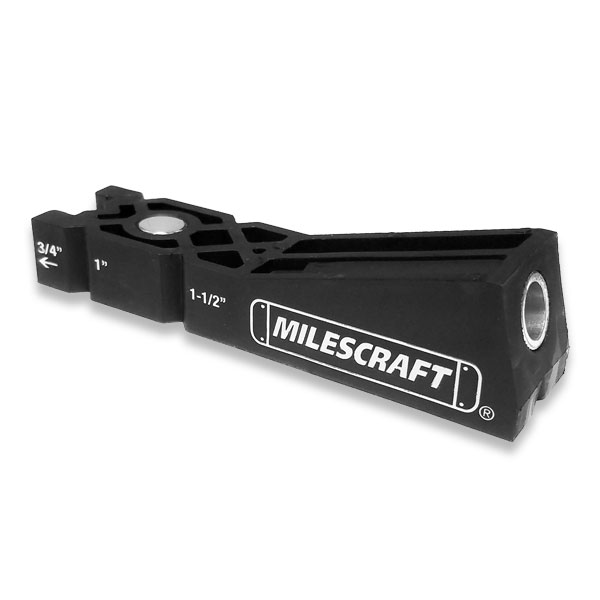

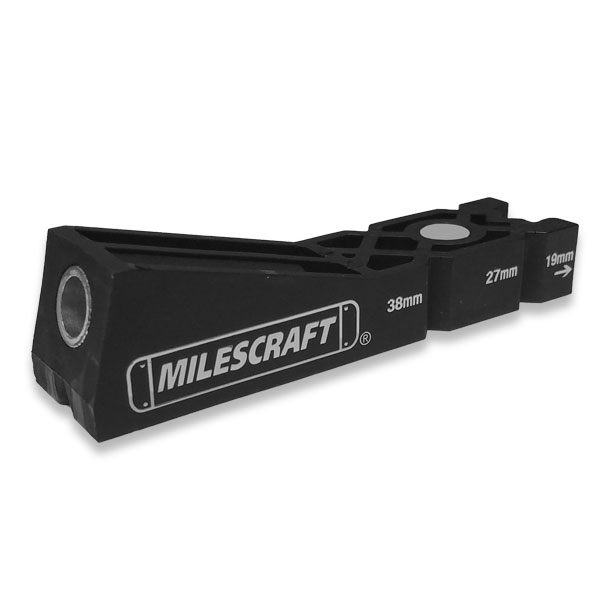

Board Thickness Settings

  • There are four common board thickness settings built into the jig: 1/2”, 3/4” 1” and 1-1/2” (12, 19, 27, 38mm)
  • Easy reference marks to mark your board thickness and set your jig

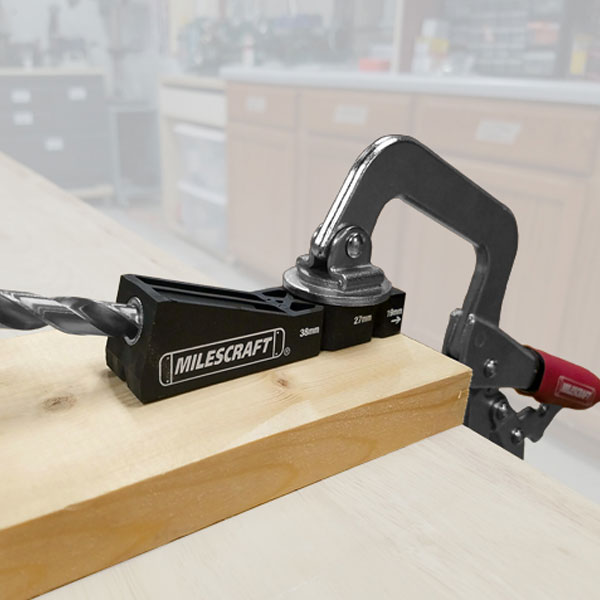

Clamping Magnet

  • The PocketJig100 pocket jig includes a clamping magnet to allow you to easily secure the jig to your workpiece using any standard metal clamp.
  • For speed and accuracy, use the Milescraft 3” FaceClamp

Hardened Steel Drill Bushing

  • The bushing allows for precise pocket holes every time using the Milescraft PocketBit
  • Tight tolerances between the bushing and the drill bit, reduce tear-out and create a clean pocket hole on the first try

Quick Change Compatible



 WARNING: Cancer and Reproductive Harm. For more information go to www.P65Warnings.ca.gov/product

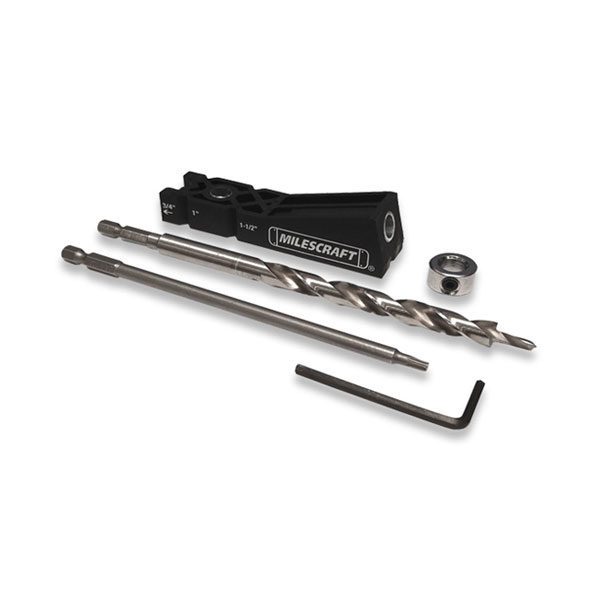

  • Includes

    PocketJig100, 3/8" (9.5mm) PocketBit, 3/8" Stop Collar, 6" Magnetic T20 Star Driver, Hex Key, Instruction Manual

  • Jig Body Material

    Nylon

  • Clamping Method

    Works with any clamp

  • For use with

    Wood Materials from 1/2" to 1.5" thick (12 - 38mm)

  • Drilling Angle

    15°

  • Driver Style

    T20

  • Weight

    0.46 lbs.

1321 PocketJig100 Manual (pdf)

Download >>
1321 PocketJig100 Video
WATCH NOW >>
FaceClamp Video
WATCH NOW >>
Average Review:
5.00 out of 5 based on 3 customer ratings

Join the Milescraft community and write a review for this product!

WRITE A REVIEW>>

Add a review

  1. 5 out of 5

    I do a lot of PH, so this one came in handy when it came down to do PH on larger boards that wouldn’t fit in my Kreg jig. It’s compac and has a magnet on the end, so you can combo it up with the 3” face clamp to hold it down for you. Very simple to use and versatile.

  2. 5 out of 5

    This is the first Milescraft product I purchased in my collection of Milescraft products. This is one of the many pocket hole jigs on the market and this one is a good one. YES, you will have to do a little measuring and that is OK. Measuring and marking is all part of the fun with woodworking and when you use this tool you will have to get used to it. That’s woodworking.

    One Milescraft product you will want to purchase to help make your experience to be great with this tool is a Milescraft face clamp. WHY? There is a magnet built into this jig. The face clamp and this jig will work well together and makes the setup for each hole you drill much easier to deal with. It also helps in the assembly process. Make sure you get a face clamp too. Pocket hole jigs can be a lot of fun in your shop.

  3. 5 out of 5

    (verified owner)

Why did my 3/8" Pocket Bit break?

To ensure the life of your drill bit, the drill needs to be at full speed before penetrating the wood and any areas with knots should be avoided when drilling pocket holes.

What is the drilling angle for the PocketJig100?

The drilling angle is 15°
