1325 - PocketJig200™

Simple, Quick, Precise Pocket Hole Jig Kit


SKU: 1325 Categories: ,
View Replacement Parts
<< Back
PocketJig200™ - Replacement Parts

||| Details

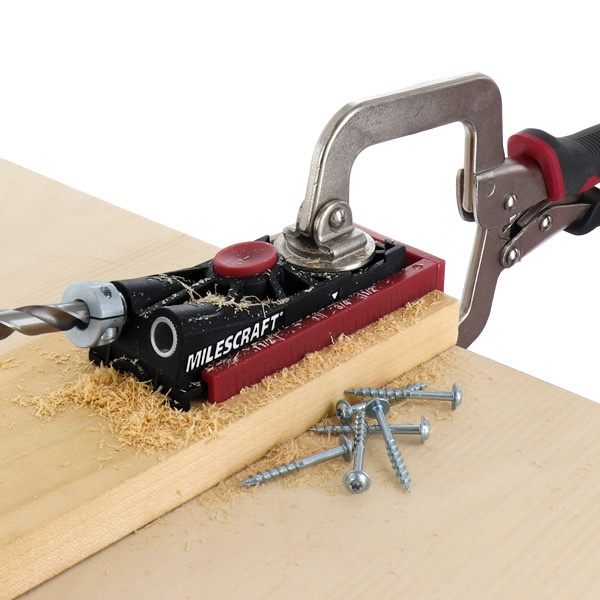

The Milescraft PocketJig200™ pocket hole jig allows you to connect your workpieces in a quick and timely manner. Whether you want to build storage projects, cabinets, shelves, or bookcases, this kit does it all. Allowing you to create corner joints, T-Joints, Framing Joints, Miter Joints, and do repairs. With built-in settings for board thicknesses, there is no need to manually measure. Just set this pocket jig to your desired setting, set the depth of your bit, and start drilling.

PocketJig200™ Pocket Hole Jig Kit – Designed To Make Repairs Simple

  • Spring-loaded sled adjust button allows the jig to be set to do repairs of any nature around your home or your shop

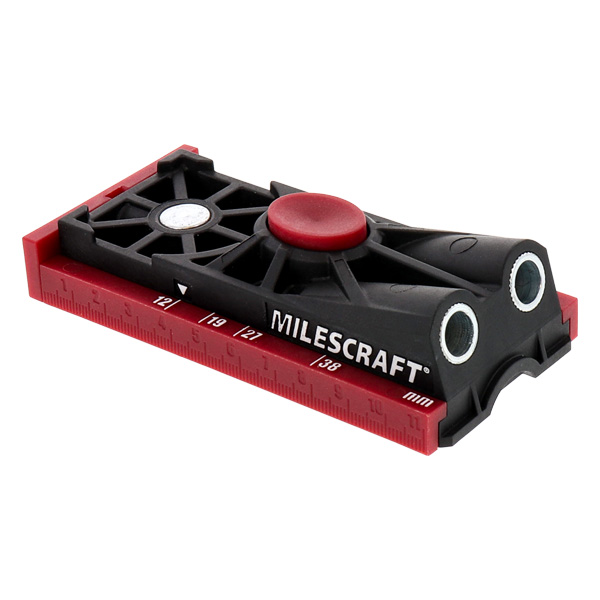

Built-In Imperial And Metric Scales

  • The built-in scales allow you to easily measure the thickness of your workpiece

Board Thickness Settings

  • There are four common board thickness settings built into the pocket jig: 1/2″, 3/4″, 1″ and 1-1/2″ (12, 19, 27, 38mm)
  • Easy readout arrow to help define your board thickness setting
  • Easily adjust to your board thickness setting with the single sled design and sled adjust button

Hardened Steel Drill Bushings

  • For precise and accurate pocket holes every time using the Milescraft PocketBit
  • Tight tolerances between the bushing and the drill bit, reduce tear-out and create a clean pocket hole on the first try

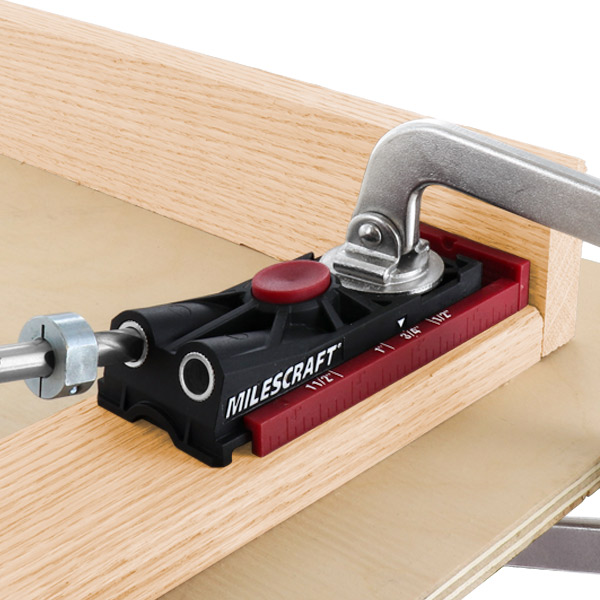

Recessed Clamp Pocket with Magnet

  • Helps to keep the clamp in the same position as you move to different locations
  • With the stronger rare earth magnet, you can easily clamp the jig from one location to another
  • For speed and accuracy, use the Milescraft FaceClamps™

Convenient Built-In Depth Setting

  • Easily set your bit for the correct drilling depth

3/8″ HSS Step Drill Bit

  • Made from high-speed steel the PocketBit with a 1/4″ hex shank is designed to reduce clogging and provide smooth and precise holes

3/8″ Anti-roll, Split Design Stop Collar

  • The split design prevents slipping of the set screw when tightened and prevents the bit from rolling
  • Includes hex key for tightening

Quick Change Compatible Connector

  • With the Milescraft Connector, you can quickly change from drilling to driving
  • Accepts all 1/4″ hex bits
  • Quickly and easily change from drilling to driving

3″ and 6″ Magnetic T20 Torx® Drivers

  • For maximum torque settings without stripping

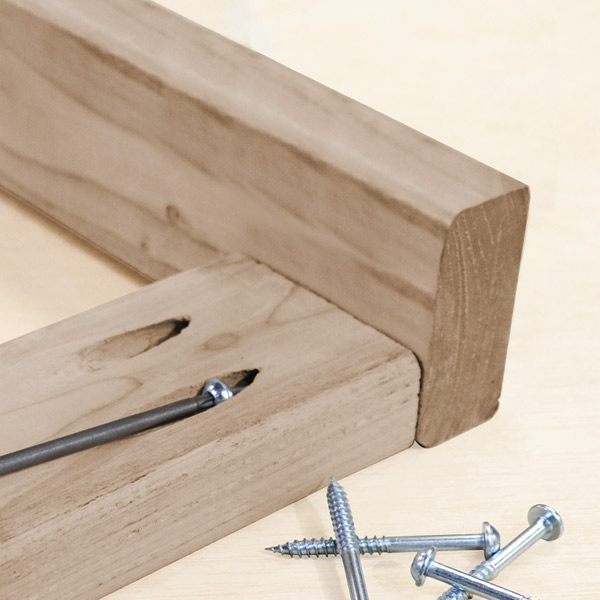

  • To allow pocket screws to align with maximum precision

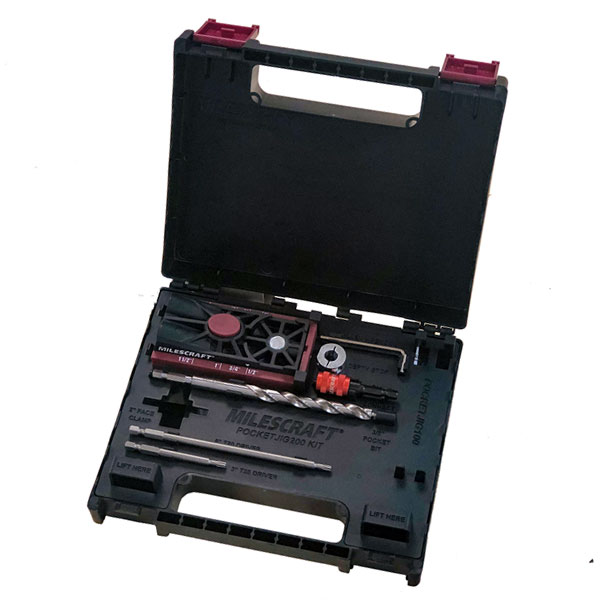

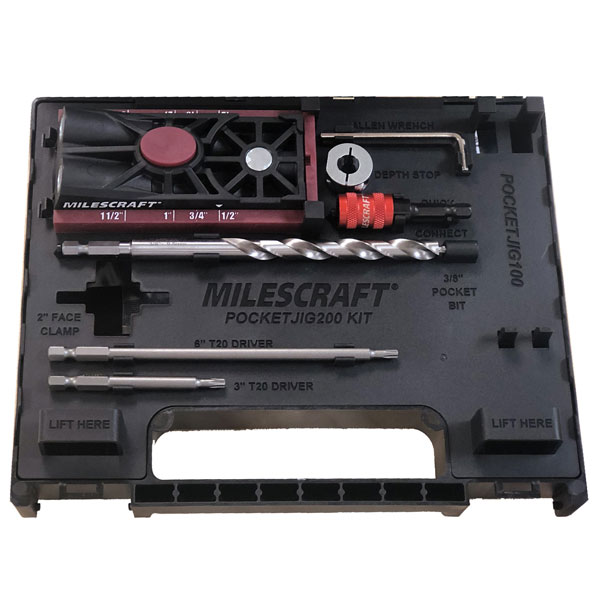

Rugged Storage Case

  • With designated places for components, you will never have to go digging through your toolbox for your pocket hole jig again
  • Storage compartment for 2″ FaceClamp™
  • Storage slot for PocketJig100

 WARNING: Cancer and Reproductive Harm. For more information go to www.P65Warnings.ca.gov/product

  • Material

    Reinforced Nylon

  • Drill Guide Bushing Spacing


  • Clamping Method

    Works with any clamp

  • For use with

    Wood Materials for 1/2" to 1.5 thick (12-38mm)

  • Drilling Angle


  • Screw and Driver Style

    T20 Torx

  • Screws

    10 of each: 1” (25mm), 1.25” (32mm) coarse and fine, 1.5” (38mm), 2” (51mm), 2.5” (64mm)

  • Drivers

    3" T20 Magnetic Head Driver and 6" T20 Magnetic Head Driver

  • Pocket Plugs

    10 plugs

  • Connector

    Accepts all 1/4" hex bits

  • Drill Bit

    3/8" (9.5mm) HSS Pocket Bit with 1/4" shank

  • Includes

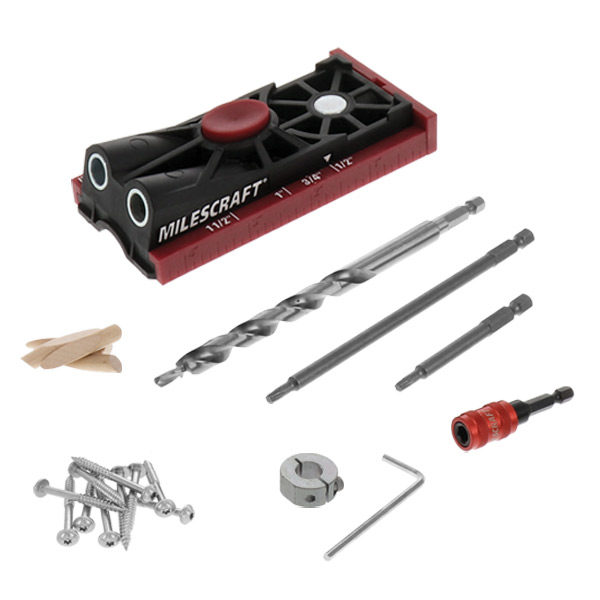

    Double Barrel Pocket Hole Jig, Quick Connect, 3" & 6" T-Star Driver Bits, 3/8" PocketBit™, 60 Piece T20 Pocket Hole Screws, Pocket Plugs, 3/8" Split Design Stop Collar with Hex Key and Instruction Manual

1325 PocketJig200 Manual (pdf)

Download >>
1325 PocketJig200 Video
Average Review:
5.00 out of 5 based on 7 customer ratings

Join the Milescraft community and write a review for this product!


Add a review

  1. 5 out of 5

    Awesome Product!! This pocket jig made my job so much easier to do I would recommend this to anyone that does woodwork.

  2. 5 out of 5

    I have always liked Milescraft products. Well built and good design. The pocket jig didn’t disappoint, usual excellent quality

  3. 5 out of 5

    (verified owner)

    I first purchased the HD PocketJig300 and was so pleased with it that I went for this smaller model. Great product at a great price.

  4. 5 out of 5

    (verified owner)

    This comes with a remarkable case. Everything fits.

  5. 5 out of 5

    (verified owner)


  6. 5 out of 5

    (verified owner)


  7. 5 out of 5

    (verified owner)

    Like the stuff a lot. Makes my joints a lot better and tighter.

What can be done to prolong the life of my pocket bit?

Always be sure your drill is set to the highest speed and lowest torque and the drill bit is in the bushing before powering up the drill and contacting any wood surfaces.
