1326 - PocketJig300

The Heavy-Duty Pocket Hole Solution For Bigger Projects!!

$39.99

SKU: 1326 Categories: ,
View Replacement Parts
<< Back
PocketJig300 - Replacement Parts

||| Details

The Milescraft PocketJig300 heavy-duty pocket hole jig is the ideal solution for bigger projects. Whether you’re building decks, fences, outdoor furniture, or framing walls, this HD jig has you covered!

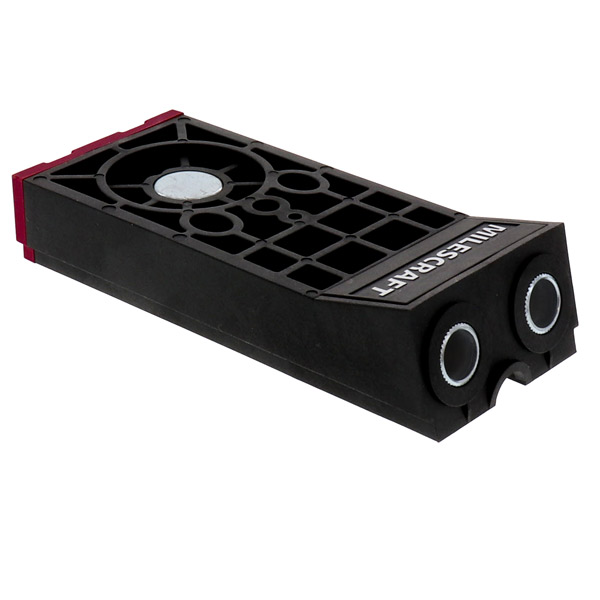

PocketJig300 HD Pocket Hole Jig Kit – Designed For Bigger Builds

  • For use on materials 1-1/2″  (38mm) and larger
  • Perfect for 2 x 4 projects
  • 50% stronger joints than using standard pocket hole jigs

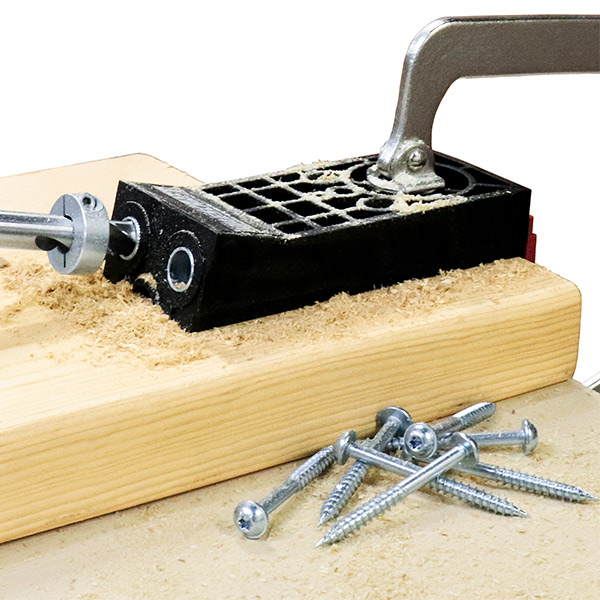

Hardened Steel Drill Bushings

  • For precise and accurate 1/2″ (12.7mm) pocket holes

Thick Durable Fence

  • Flip down when drilling new pocket holes
  • Keep up when doing repairs

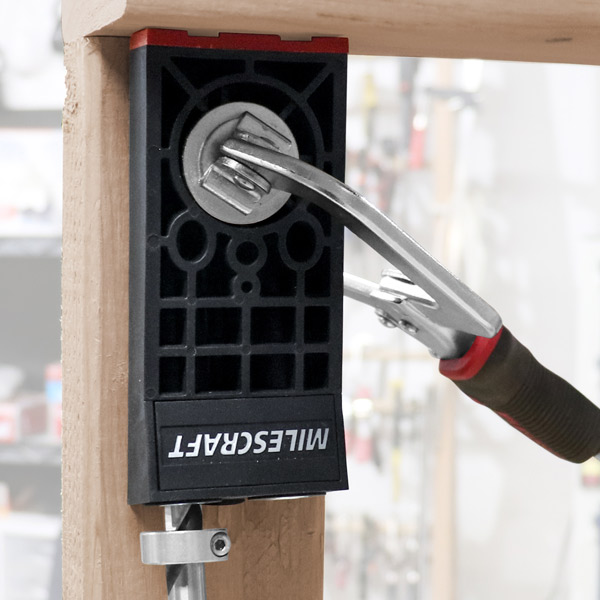

Recessed Clamp Pocket

  • Keeps the clamp in the same position as you move to different locations
  • With the rare Earth magnet, you can easily move the jig from one location to another
  • For speed and accuracy, use with Milescraft FaceClamps

Convenient Built-In Depth Stop Setting

  • Easily set your bit for the correct drilling depth

Magnetic T25 Torx® Driver

  • For maximum torque settings without stripping
  • To allow pocket screws to align with maximum precision
  • 1/4″ (6.35mm) hex shank is quick change compatible

1/2″ HSS Step Drill Bit

  • Made from high-speed steel
  • Eliminates clogging and provides smooth and precise holes
  • 1/4″ (6.35mm) hex shank is quick change compatible

1/2″ Split Design Stop Collar with Flat

  • The split design prevents slipping of the set screw when tightened and the flat prevents the bit from rolling

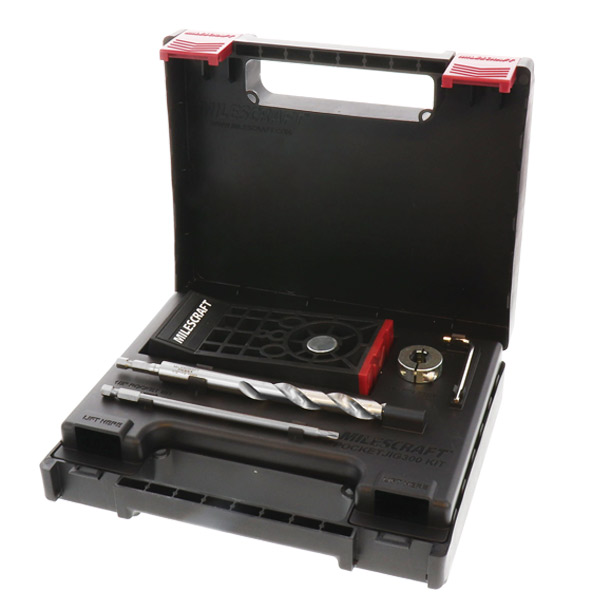

Rugged Storage Case

  • With designated places for components, you will never have to go digging through your toolbox for your pocket hole jig again

 WARNING: Cancer and Reproductive Harm. For more information go to www.P65Warnings.ca.gov/product

  • Jig Material

    Reinforced Nylon

  • Drill Guides

    (2) 1/2" (12.7mm) diameter

  • Drill Guide Bushing Spacing

    1-7/16" (36mm)

  • Clamping Method

    Works with any clamp

  • For use with

    1-1/2" (38mm) and thicker material

  • Drilling Angle

    15°

  • Screws

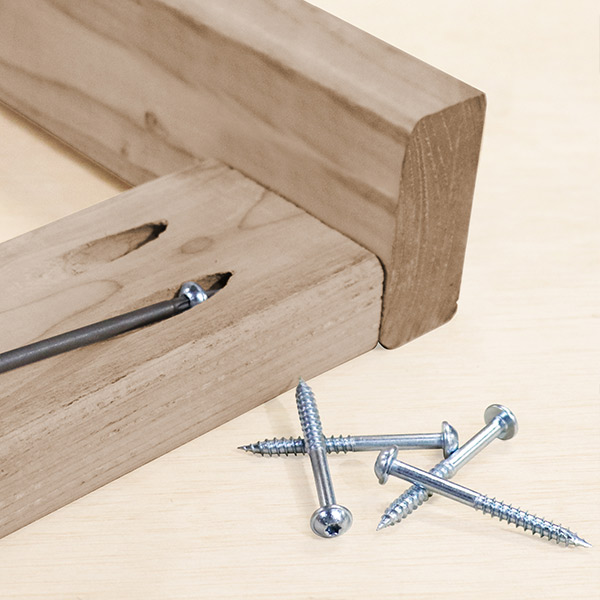

    2.5″ (63.5mm) HDPocketScrews, T25 Torx Drive (10 pcs.)

  • Driver

    6" Magnetic T25 Torx® Driver, 1/4" (6.35mm) shank

  • Drill Bit

    1/2" (12mm) HSS Pocket Bit, 1/4" (6.35mm) shank

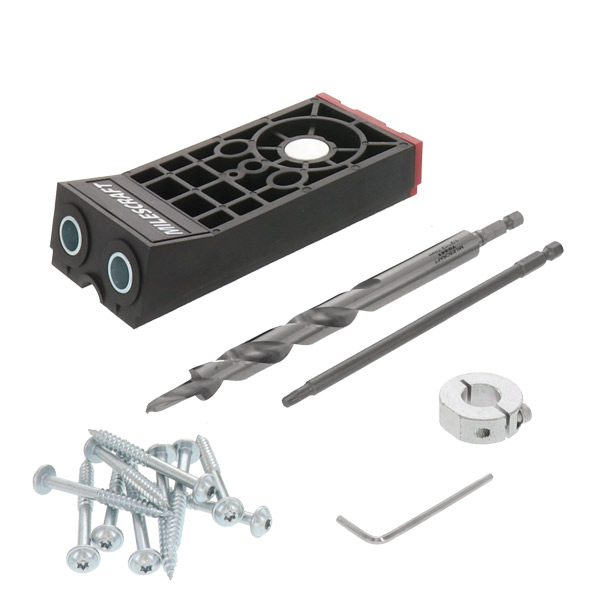

  • Includes

    (1) HD Pocket Hole Jig, (1) 1/2" (12.7mm) Split Design Stop Collar with Flat, (1) Hex key, (1) 1/2" (12.7mm) PocketBit, (1) 6" (150mm) T25 Torx® Driver, (10) 2-1/2" (63.5mm) T25 Coarse Screws

  • Compatible With

    T25DriverSet
    HDPocketBit
    2.5" HDPocketScrews

1326 PocketJig300 Manual (pdf)

Download >>
1326 PocketJig300 Video
WATCH NOW >>
Average Review:
4.88 out of 5 based on 8 customer ratings

Join the Milescraft community and write a review for this product!

WRITE A REVIEW>>

Add a review

  1. 4 out of 5

    (verified owner)

    The PocketJig300 is great. The box was damaged during shipping and won’t hold some items for storage.

    • Timothy, we’re sorry to hear your case arrived damaged and apologize for this inconvenience. We are sending you a replacement case for your PocketJig300, which will arrive shortly.

  2. 5 out of 5

    (verified owner)

    I misunderstood the jig. I thought it was a double what the single but I do need this side.

  3. 5 out of 5

    (verified owner)

    Will order again, it makes wood working so much fun

  4. 5 out of 5

    Love this! Ease of use and price can not be beat. The joints are strong even without glue. I would suggest to have someway to hold the screws inside the case

  5. 5 out of 5

    (verified owner)

    Terrific entry level hd jig… great price and great customer service to boot! I’m never going back to Kreg.

  6. 5 out of 5

    (verified owner)

    Works great

  7. 5 out of 5

    (verified owner)

    Sturdy construction and well thought out i use this alongside my armor auto jig for the big stuff I paid 200 for the armor jig (came with clamp and 800 screws) after buying This for 40 I wish I would have bought the milescraft save your money and buy all Milescraft will do the job for less than half price

  8. 5 out of 5

    (verified owner)

    Good for the big job like I want.

What can be done to prolong the life of my pocket bit?

Always be sure your drill is set to the highest speed and lowest torque and the drill bit is in the bushing before powering up the drill and contacting any wood surfaces.
