Discontinued

1223 - RouterGuide Kit

RouterGuideKit
RouterGuideKit
RouterGuideKit
RouterGuideKit
RouterGuideKit
RouterGuideKit

3 Precision Cutting Tools in One Kit!

Circle Compass, Edge Fence, & Offset Base

 This one product gives you the ability to make difficult cuts cleanly and accurately with your router.

This product is not available for purchase online at this time.

SKU: 1223 Category:
View Replacement Parts
<< Back
RouterGuide Kit - Replacement Parts

||| Details

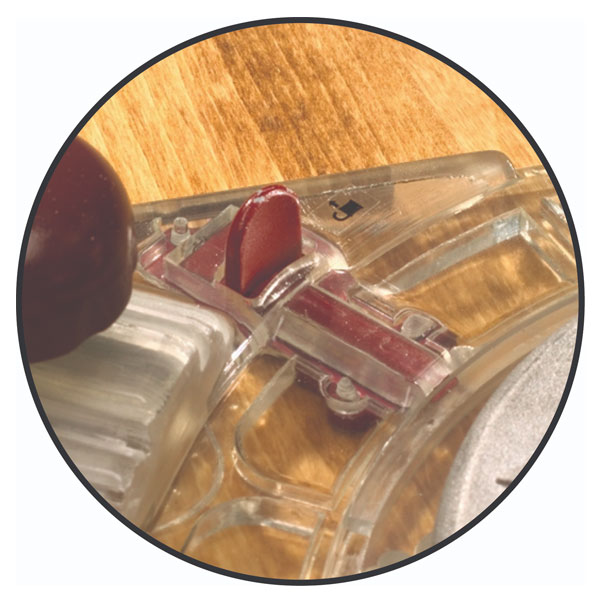

The Milescraft RouterGuide Kit features the 7″ TurnLock™ universal base plate, which fits most routers up to 3 HP. Attach your router quickly and easily to each accessory, without tools. Thumb-activated lock/release mechanism enhances speed and safety when changing tools. TurnLock™ design for fast, convenient bushing changes and easy mounting and dismounting. TurnLock™ BasePlate accepts all Milescraft bushings.

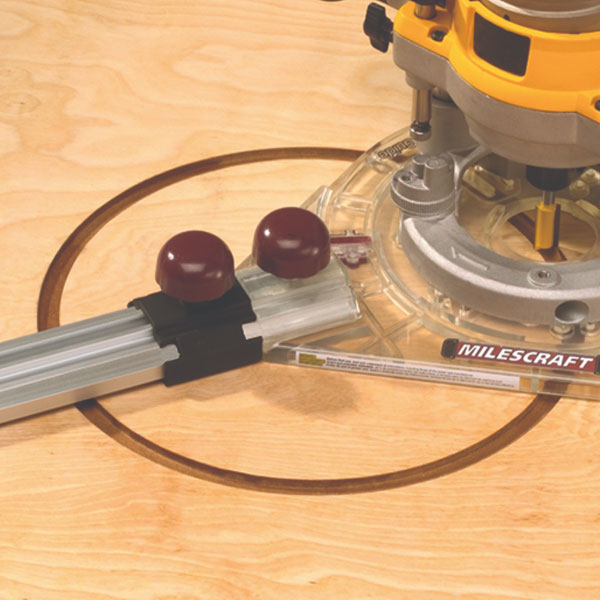

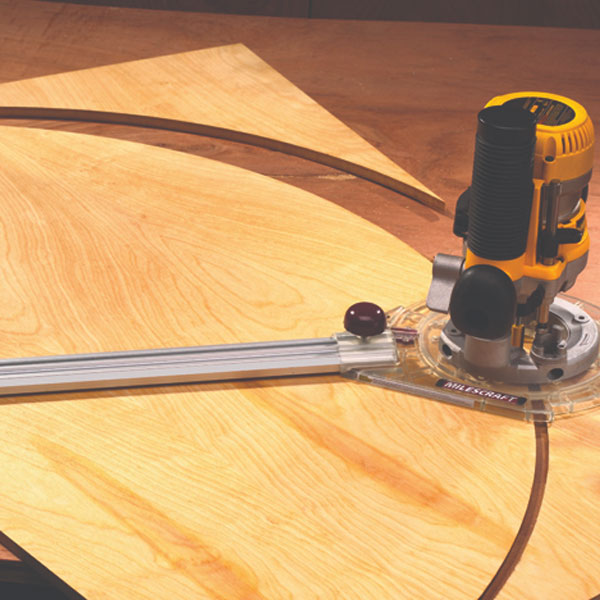

Circle Compass

  • Cuts circles and arcs from 10″ to 51″ in diameter
  • Edge Fence
  • Sturdy metal edge guide easily adjusts for cuts up to 31″ from edge

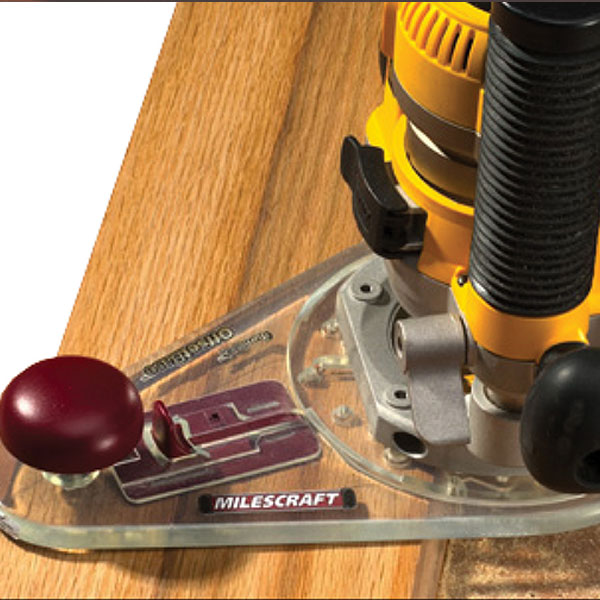

Offset Base

  • Clear 13″ offset base provides added stability during edge routing
  • Oversized handle is easy to grip providing superior control of router

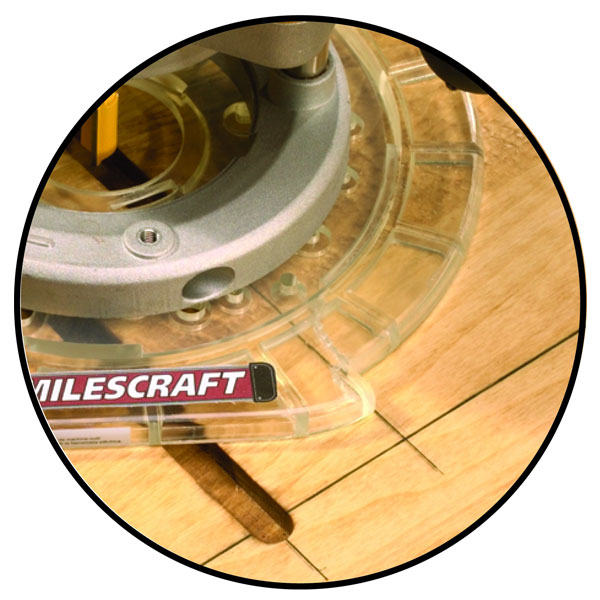

Edge Fence

  • Sturdy 20″ aluminum beam provides stability and rigidity for internal and external cuts
  • Clear base has center mark for improved alignment

For more information on our universal base plate, see our compatibility chart and template.

**Please note that the scales on the beam were removed as part of a redesign process, as these were not fixed in place, thus causing inaccuracy.

 WARNING: Cancer and Reproductive Harm. For more information go to www.P65Warnings.ca.gov/product

  • Includes

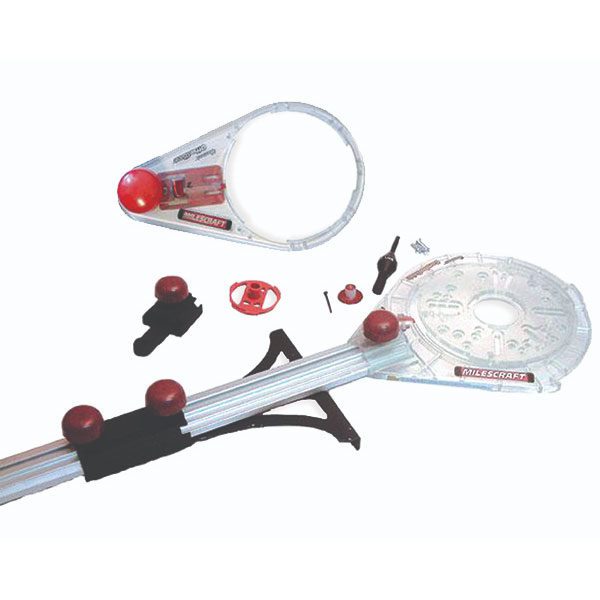

    Circle Compass, Edge Fence, Offset Base, TurnLock™ BasePLate

  • Included Bushing

    5/8" Long Metal Nose Bushing

  • Material

    Durable polycarbonate material, and metal

  • Weight

    4.16 lbs

1223 RouterGuide Kit Manual (pdf)

Download >>

BasePlate Mounting Key Manual (pdf)

Download >>

BasePlate Mounting Key (30081 BasePlate) (pdf)

Download >>
1223 Router Guide Kit From Milescraft
WATCH NOW >>
1223 – Circle Edge Guide – Part of...
WATCH NOW >>
1223 – Offset Base – Part of the...
WATCH NOW >>
Average Review:
0 out of 5 based on 0 customer ratings

Join the Milescraft community and write a review for this product!

WRITE A REVIEW>>

Be the first to review “RouterGuide Kit”

Do you offer beams for the RouterGuideKit that are longer than 20"?

Beams can be custom cut to the desired length. Please contact Milescraft Customer Service by phone or email, and we would be happy to assist you with your custom beams.

What is the Offset Base used for?

The Offset Base is used for routing the edges of your workpiece.

Why are there no scales on the 1223 beam?

The scales were removed as part of a redesign process, as these were not fixed in place. It had come to our attention that the scales would need to be adjusted based on the router bit size that the consumer was using and this caused great confusion. Without knowing what router bits were being used for the different types of applications, the moving scales made accuracy difficult.

Measuring for Circle Cuts:

With a ruler measure and mark the center point of your circle and then mark at least one point on your circle diameter

For Outside Circles:

Your router bit should be positioned on the outside of the mark you made for your diameter, but be sure it is still touching your mark. You will need to measure from the outside of your router bit once in this position to the center mark you made for your pivot.

For Inside Circles:

Your router bit should be positioned on the inside of the mark you made for your diameter, but be sure it is still touching your mark. You will need to measure from the inside of your router bit once in this position to the center mark you made for your pivot.

Do I need special screws to attach the TurnLock™ BasePlate to my Ryobi Router?

Some Ryobi routers require special screws which will be supplied upon request at no charge to you. To acquire these special screws please contact Milescraft Customer Service via email,  info@milescraft.com or phone 224-227-6930.

How do I prevent the spread of sawdust when using my router?

If your router comes with a dust deflector, we recommend installing this before routing. It may also be helpful to install a dust collection adapter on your router, should this accessory be available for your particular brand/model number.

Is my compact/palm/trim router compatible with the base plate?

Base plate compatibility chart and template.



Compatible Compact/Palm/Trim Routers:

Bosch/Colt PR20EVSPK
Bosch GFK125CE
DeWalt DCW600B
DeWalt DWE6000
DeWalt DWP611
Ridgid R2401
Ridgid R24012
Ridgid R86044B
Ridgid R860443B
Ryobi P601

Not compatible w/o plunge attachment:

Makita RT0700C (requires a plunge attachment for installation on the base plate)
Makita RT0701C (requires a plunge attachment for installation on the base plate)
Makita XTR01 (requires a plunge attachment for installation on the base plate)
Bosch/Colt PR20EVS (requires a plunge attachment for installation on the base plate)
Milwaukee 2723-20 (requires Milwaukee plunge attachment 48-10-5601, will align with slots I and E.).

Not compatible:

Porter Cable PC450
Bauer 19121E-B

Is my compact/palm/trim router compatible with the base plate?

Base plate compatibility chart and template.



Compatible Compact/Palm/Trim Routers:

Bosch/Colt PR20EVSPK
Bosch GFK125CE
DeWalt DCW600B
DeWalt DWE6000
DeWalt DWP611
Ridgid R2401
Ridgid R24012
Ridgid R86044B
Ridgid R860443B
Ryobi P601

Not compatible w/o plunge attachment:

Makita RT0700C (requires a plunge attachment for installation on the base plate)
Makita RT0701C (requires a plunge attachment for installation on the base plate)
Makita XTR01 (requires a plunge attachment for installation on the base plate)
Bosch/Colt PR20EVS (requires a plunge attachment for installation on the base plate)
Milwaukee 2723-20 (requires Milwaukee plunge attachment 48-10-5601, will align with slots I and E.).

Not compatible:

Porter Cable PC450
Bauer 19121E-B
