1400 - SawGuide™

Exceptional Flexibility and Precision When Cutting with a Jig Saw or Circular Saw



This product is not available for purchase online at this time.

SKU: 1400 Category:
View Replacement Parts
<< Back
SawGuide™ - Replacement Parts

||| Details

The Milescraft SawGuide™ is a universal edge guide and circular saw guide, helping users make straight, angle, bevel, and rip cuts with either a circular or jig saw. Blade attachment for your circular or jig saw provides an edge-following cutting guide for controlled cuts. The preset holes in the guide head allow for clean circular cuts with your jig saw. Measuring scales on the bars provide quick and easy cutting measurements. The unique trim feature on the guide head easily adjusts your cut by 1/16″ without tools. Individual unmounted blades can also be used as a measuring scale.

SawGuide™ Features

  • Exclusive trimming feature allows you to adjust the length of cut by 1/16″ increments without tools
  • Rip fence guide works equally as well from the left or right-hand side
  • Extends saw blade up to 9.5″ from the edge of workpiece with jig saws

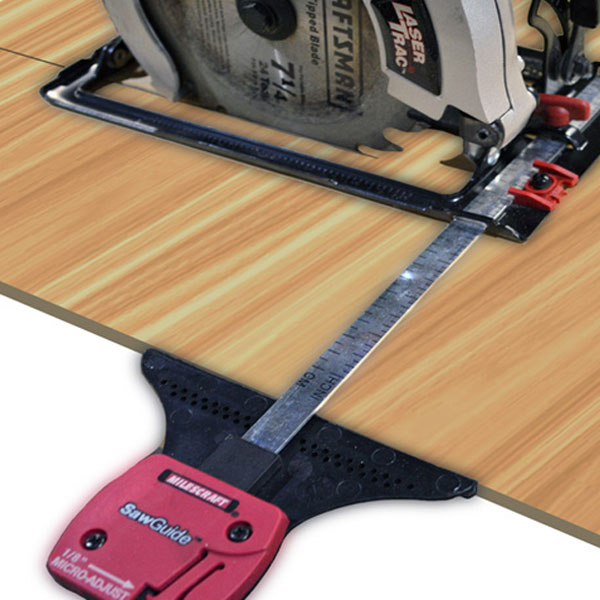

  • Extends saw blade up to 6″ from the edge of workpiece with circular saws

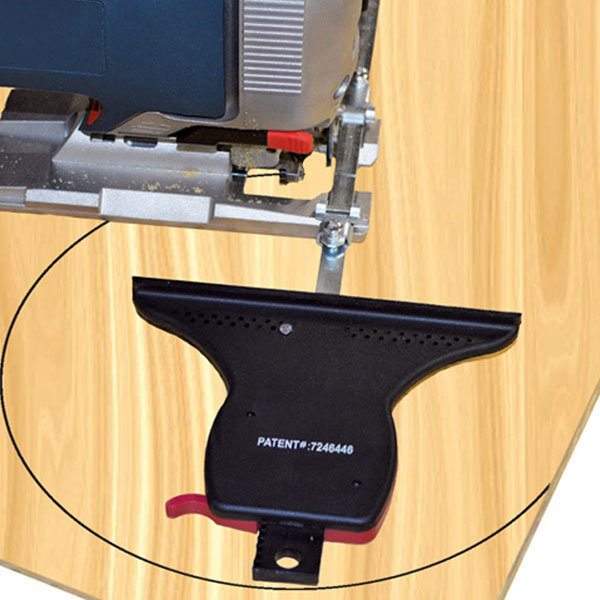

  • Cuts circles from 4″ to 19″ in diameter
  • Multiple holes in guide head compensate for varying bar widths, ensuring precise alignment of jig’s blade when cutting circles
  • Innovative tooth-gear design of saw guide allows for a toolless exchange of bars

SawGuide™ Bars

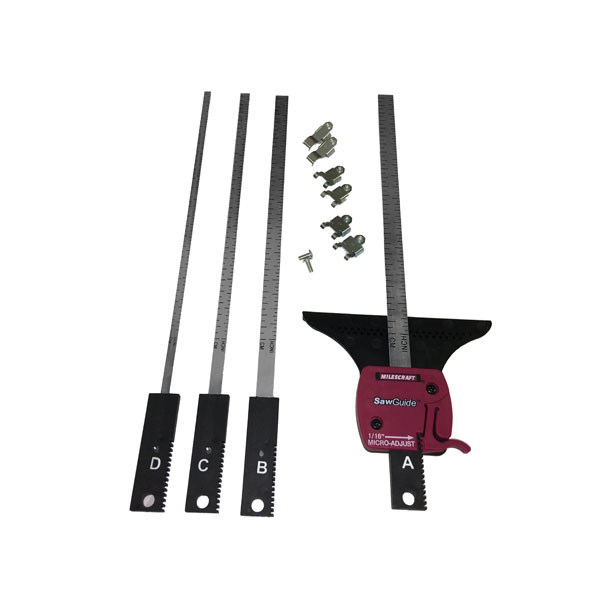

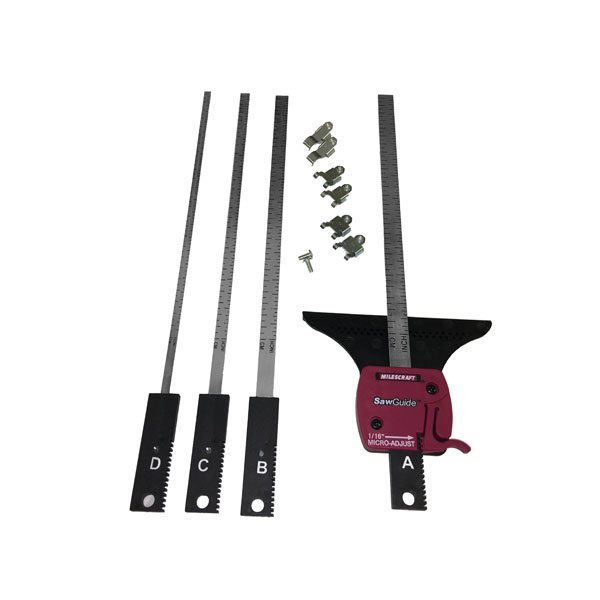

  • 4 bars of varying widths, plus special holding clips, permit easy attachment to most circular and jig saws
    • .245″ (just less than 1/4″)
    • .370″ (just less than 3/8″)
    • .485″ (just less than 1/2″)
    • .585″ (just less than 5/8″)

SawGuide™ works with nearly any saw, including (but not limited to) the following brands:
Bosch®    DeWalt®    Black & Decker®    Porter Cable® Skil®    Makita®    Craftsman®    Milwaukee® Ridgid®    Ryobi®    GMC®    Hitachi® Freud®   Mastercraft®    ToolShop®   and more…

 WARNING: Cancer and Reproductive Harm. For more information go to www.P65Warnings.ca.gov/product

  • Circle Cutting

    4" to 19" in diameter

  • Jig Saw

    Extends up to 9.5" from edge

  • Circular Saw

    Extends up to 6" from edge

  • Includes

    4 Bars (.245", .370", .485", .585") and clips

  • Bar Thickness

    2mm (all 4 bars)

  • For Use With

    Jig Saws and Circular Saws

  • Weight

    1 lb

1400 SawGuide Manual (pdf)

Download >>
1400 SawGuide Video
Average Review:
5.00 out of 5 based on 5 customer ratings

Join the Milescraft community and write a review for this product!


Add a review

  1. 5 out of 5

    guide gives precise cuts. measure once then cut. good quality product at an good price.

  2. 5 out of 5

    (verified owner)

    Better than expected

  3. 5 out of 5

    (verified owner)

    We haven’t used this yet, but it’s well built and very sturdy.

  4. 5 out of 5

    Another great product from Milescraft. Used this with my circular saw to rip a 1 x 12 x 12 down the middle and it was perfectly straight. Set up was very easy. Buy with confidence.

  5. 5 out of 5

    (verified owner)

    good quality

I am using the SawGuide to cut circles, why is the cut getting larger?

If the cut of your circle gets larger, then you have your nail set too far backward.

I am using the SawGuide to cut circles, why is the cut getting smaller?

If the cut of your circle gets smaller, then you have your nail set too far forward.

What is the best blade to use in my jigsaw for circular cuts?

Choosing the best curve cutting jigsaw blade is essential for completing your tasks with the best results. It is important to get the appropriate tools for the material that you are using.

Here a few tips and tricks for cutting circles with jigsaws.

  1. Choose a blade that is appropriate for the material that you are working with
  2. Blades with a higher TPI (teeth per inch) will provide a smoother cut
  3. Narrow blades are preferred for curved/circular cuts
  4. For softwoods, softer hardwoods (poplar, mahogany, alder, etc.), and sheet goods, run your jigsaw at its highest speed for most cuts. If you encounter resistance, back off the speed slightly.

Is the SawGuide Compatible with the Dremel Saw-Max?

Yes, the SawGuide is compatible with the Dremel Saw-Max.
