8401 - Trim45

Produce finish trim to exact, accurate measurements without calculations or a helper.


SKU: 8401 Categories: ,

||| Details

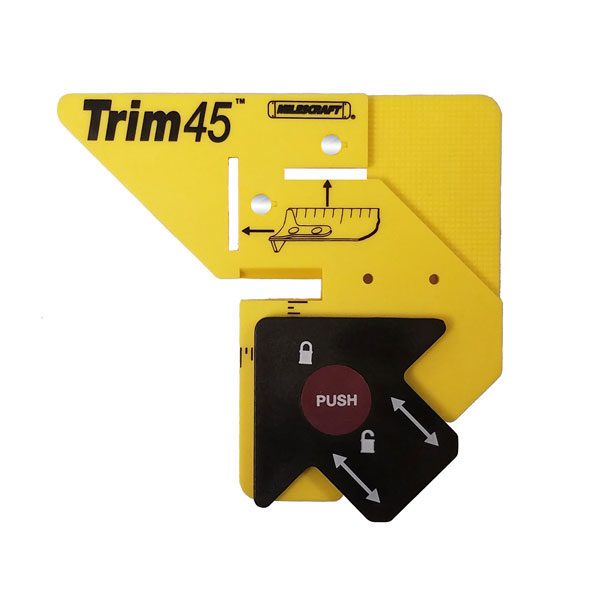

The Milescraft Trim45 trim carpentry aid is the handiest tool in the toolbox when it comes to installing door and window casement trim, as well as decorative trim work projects such as fireplaces or bookshelves. Unique measuring and marking device eliminates fumbling with tape measures when determining the length of finish trim. Unique to the Trim45 is an adjustable reveal setting ranging from 1/8″ to 1/2″, in 1/8″ increments, allowing it to be used on any project in any home or at any job site adding versatility and usability.

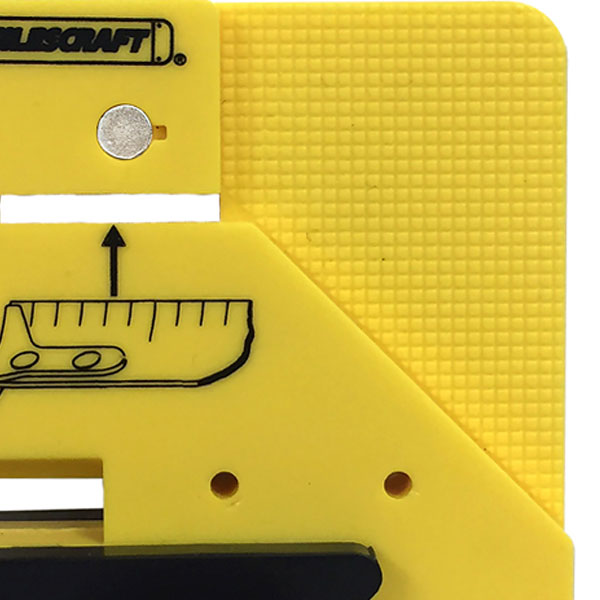

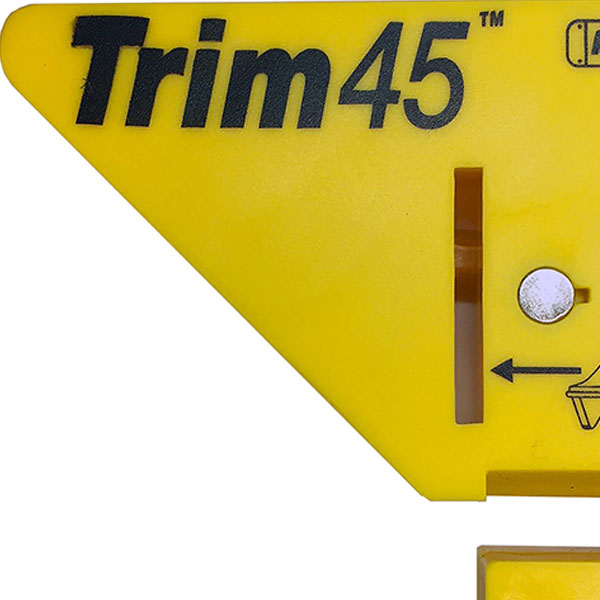

Tape Measure Slots and Rare Earth Magnets

  • Making it easy to measure jamb openings and trim stock, without the assistance of another person, for perfect miter cuts every time

45° Angled Head

  • For 45° marking of miter cuts

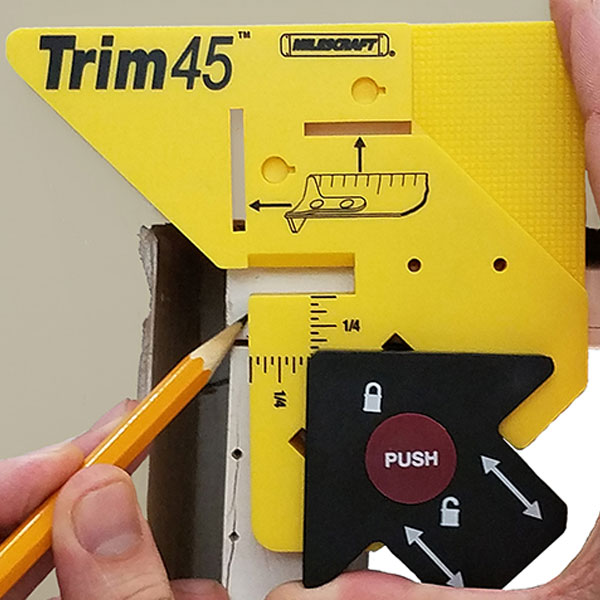

Adjustable Reveal

  • Set reveals from 1/8″ to 1/2″, in 1/8″ increments

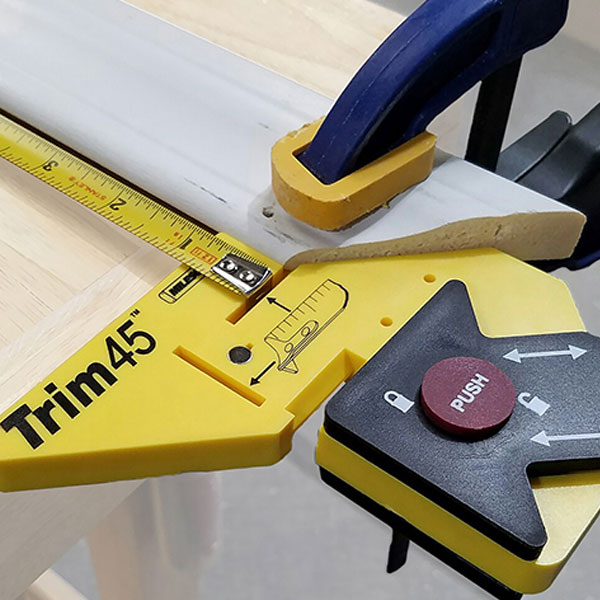

Built-in Clamp Pad

  • Designed to work with any clamp

Push Lock Button

  • For securely setting your reveal accurately each time



 WARNING: Cancer and Reproductive Harm. For more information go to

  • Material


  • Weight

    0.3 lbs

8401 Trim45 Manual (pdf)

Download >>
8401 Trim45 From Milescraft
Average Review:
4.63 out of 5 based on 8 customer ratings

Join the Milescraft community and write a review for this product!


Add a review

  1. 5 out of 5

    I used this product for the first time today. My first piece to cut was perfect and the tool was a breeze to use. I’ll write back at the end of the project to let you know how it holds up, but so far, it’s perfect and easy to use.

  2. 5 out of 5

    (verified owner)

    When the item finally arrived it was pretty much as described. We are still testing it to suit our needs.

  3. 5 out of 5

    (verified owner)

    Such innovation. Measures from inside the 45 degree angle short length (as is necessary).

  4. 4 out of 5

    (verified owner)

    Good for marking reveals

  5. 4 out of 5

    (verified owner)

    Haven’t had a chance to use it yet, but it arrived so fast I wondered if you had read my mind that I WAS going to order it.

  6. 5 out of 5

    (verified owner)

    Handy and time saving. Good product

  7. 4 out of 5

    (verified owner)

    A little different than the one I saw on the video with the two little nails. This one seems to be a plane one.

  8. 5 out of 5

    (verified owner)

    Very crafty idea,glad I found it, if done right no mistake
