Pen Turning

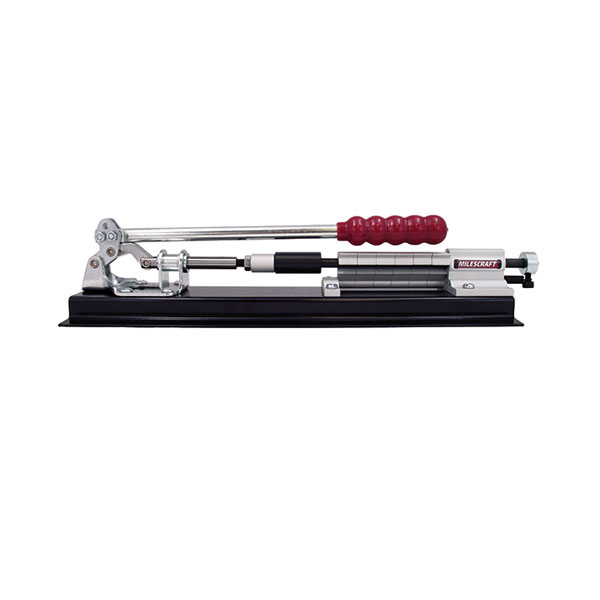

4700 - TurnersPress

TurnersPress is The Quick, Easy Way to Accurately Align and Assemble Pens and Other Turned Projects!

This product is not available for purchase online at this time.

SKU: 4700 Category:
View Replacement Parts
<< Back
TurnersPress - Replacement Parts

||| Details

This product has been discontinued and replaced by the 4701 PenPress

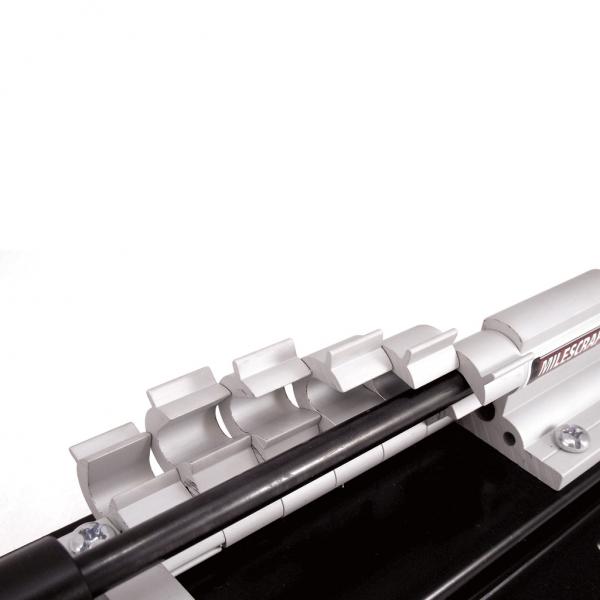

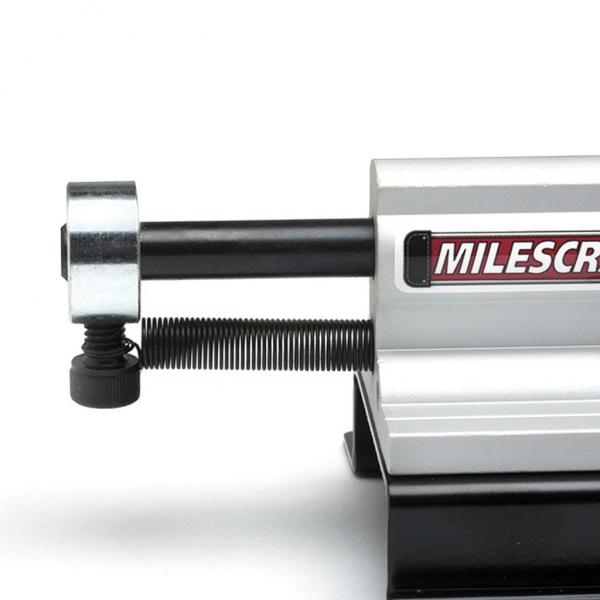

The proprietary design of the TurnersPress keeps parts in horizontal alignment while pressure is applied, preventing splitting and ensuring proper assembly. Six half-circle metal stanchions are located beneath the spring-loaded mandrel opposite the pressure arm. One or more can be quickly and easily flipped up under the mandrel, preventing it from bowing in any direction when pressure is applied during assembly. The mandrel is spring-loaded, so it pushes stacked components against the pressure arm, holding them in alignment during set up. The pressure used on any one assembly is precisely calibrated using the fine threaded micro-adjustment pad.

TurnersPress Features

  • Spring loaded, self-feeding mandrel holds objects in place

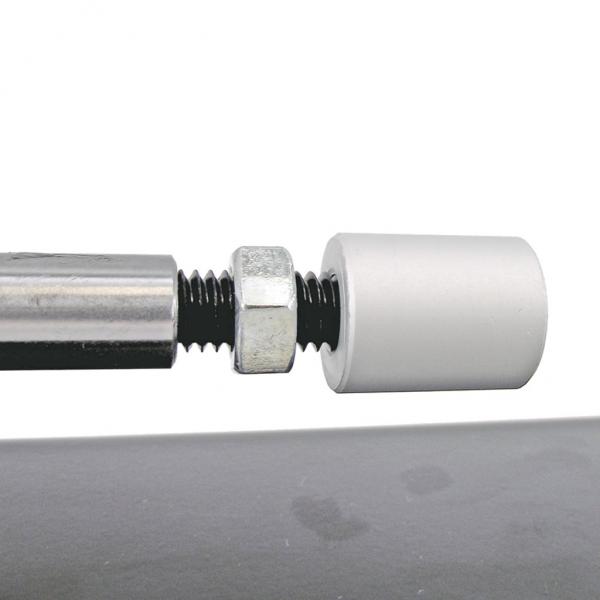

  • Micro-adjustable press pad for fine-tuned length adjustments

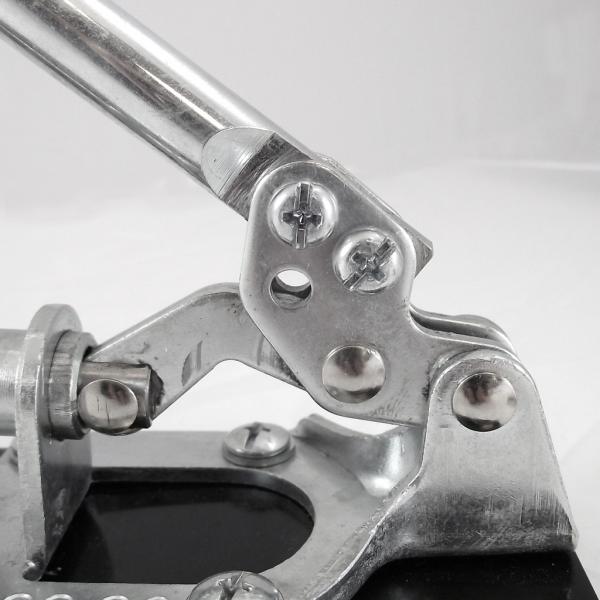

  • Steel handle and pivot deliver up to 300 pounds of force

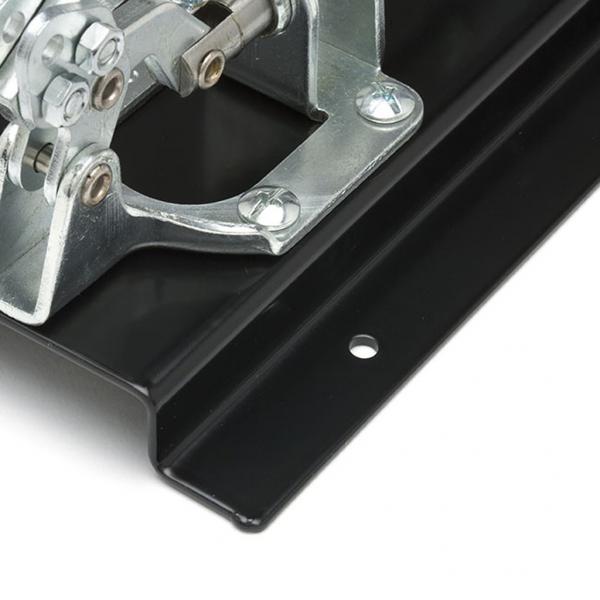

  • Wide base flange for easy table top clamping or installation

 WARNING: Cancer and Reproductive Harm. For more information go to www.P65Warnings.ca.gov/product

  • Maximum Size

    5-3/4"

  • Weight

    3.96 lbs

4700 TurnersPress Manual (pdf)

Download >>
Milescraft 4700 TurnersPress
WATCH NOW >>
Milescraft TurnersPress Presented by Woodcraft
WATCH NOW >>
Milescraft 4700 TurnersPress Pen Assembly
WATCH NOW >>
Average Review:
0 out of 5 based on 0 customer ratings

Join the Milescraft community and write a review for this product!

WRITE A REVIEW>>

Be the first to review “TurnersPress”

How do I prevent marring my pen tip during assembly, using the TurnersPress?

To prevent marring your pen tip during assembly you will want to use a rubber piece over the pen locator (black plastic stop). You can also turn your pen around and assemble backwards, please be sure to use a wooden cut out block on the end with threading to prevent damage to the threads.
